Featured Commercial & Architectural Shop Front Systems
Direct from our 180,000 m² Foshan fabrication center, our commercial fenestration systems are engineered for high-traffic retail frontages, hospitality venues, luxury showrooms, and mixed-use commercial developments. Each system delivers verifiable load deflection performance, tight weather-barrier engineering, and architectural customizability.
Manufacture Aluminum Glass Door Minimalist Wide for Kitchen Cabinet Wardrobe Doors
Engineered with ultra-slim 6063-T5 aluminium framing, micro-sightline glass retention, and anti-corrosive powder coating. Ideal for high-end boutique display shopfronts and luxury commercial interiors.
Aluminum Roof Hatches Doors 24x24inch/28x28/inch/30x30inch/Custom Size
Heavy-gauge structural aluminium access hatch engineered with gas-spring assists, dual EPDM compression seals, and insulation cores. Essential for commercial facade maintenance and rooftop MEP entry points.
Aluminum Fold Up windows Cost Kitchen Bar Window And Door Slide Vertical Bifold windows For Sale
Pneumatic assisted vertical upward bifolding shop front window. Eliminates ground-level swing obstacles, maximising sidewalk serving counters and al-fresco hospitality customer engagement.
OUNA Aluminum Alloy Doors and Windows Modern Exterior Commercial Outdoor Heavy Duty Sliding Doors
High-traffic commercial sliding entrance featuring stainless steel tandem rollers, thermal break multi-cavity framing, and low-profile ADA-compliant thresholds rated for continuous commercial cycles.
High Quality Aluminum Casement Windows and Doors Modern White Aluminum Windows
Multi-point perimeter compression locking system engineered for superior acoustic dampening (STC 42) and zero water ingress under severe cyclonic wind pressures. Perfect for commercial storefront perimeter glazing.
Customizable Modern Aluminum Alloy Bi-fold Accordion Sliding Folding Door Concertina
Heavy-load suspended ceiling track bi-folding partition. Delivers up to 92% unobstructed opening aperture, allowing retail shop fronts to seamlessly merge indoor merchandising with outdoor shopping plazas.
Jianmei Custom Aluminum Architectural Shopfront Profiles & Framing Sections
Precision-extruded structural aluminium profiles engineered for retail storefront mullions, transoms, and display frameworks. Available in custom anodized, electrophoresis, and fluorocarbon architectural finishes.

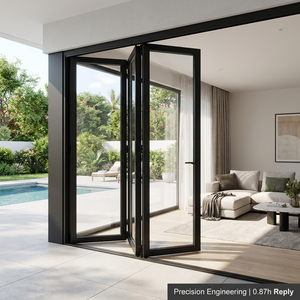

Modern Black Slim Frame Aluminum Bifold Doors Free Technical Drawing Support
Architectural slim-profile storefront folding wall equipped with German hardware gears and concealed drainage channels. Backed by full shop-drawing engineering support for commercial facade contractors.
Future Procurement Trends in Commercial Shop Front Glazing (2025–2030)
The global commercial fenestration landscape is undergoing a structural paradigm shift driven by stringent carbon neutrality mandates, heightened energy codes (ASHRAE 90.1, Title 24, and Eurocode EN 14351), and evolving experiential commercial architecture. Project procurement heads must adapt to four transformative vectors.
Polyamide Thermal Barriers
Commercial storefronts are moving away from monolithic aluminium profiles toward advanced multi-cavity PA66 GF25 thermal breaks. Modern commercial leases now legally demand facade systems achieving overall U-values below 1.4 W/m²K, slashing HVAC lifecycle expenditures for retail hubs and high-street banks.
Low-Carbon Circular Aluminium
Institutional developers increasingly demand verifiable Environmental Product Declarations (EPD). Chinese top-tier smelters are integrating renewable hydropower-smelted primary ingots with up to 65% post-consumer scrap, dropping the carbon footprint from 16kg CO2/kg down to under 4.0kg CO2/kg of profile.
Structural Silicone Glazing (SSG)
Oversized floor-to-ceiling shop front spans exceeding 4.2 meters in height are becoming the benchmark. The elimination of heavy exterior aluminium mullion caps via 2-sided and 4-sided structural sealant glazing provides the seamless, frameless glass reflections required by luxury automotive and flagship retail brands.
Smart Access & IoT Automation
Storefront window and entrance procurement now prioritizes integrated building automation protocols. Modern shopfront extrusions integrate hidden electrical chases to accommodate commercial magnetic shear locks, motorized high-cycle operators, and central fire alarm auto-egress override controllers.
Technological Innovations in Shop Front Aluminium Fabrication
Achieving long-term durability in high-traffic commercial environments requires rigorous metallurgical controls, aerospace-grade machining tolerance, and advanced chemistry surface finishes that surpass typical residential architectural standards.
6063-T6 Structural Metallurgy & Corner Crimping
While basic residential doors settle for 6063-T5, high-span commercial shop front mullions manufactured in our Foshan plant utilize 6063-T6 or 6061-T6 magnesium-silicon alloys with tensile strengths ≥241 MPa. Corner joints are joined with CNC heavy cast corner cleats and injected with 2-part polyurethane structural adhesive under hydraulic dual-head crimping, eliminating frame sag under multi-ton glass loads.
Fluorocarbon PVDF & Qualicoat Class 2 Finishing
Shopfronts in high-density urban streetscapes face continuous UV degradation, acid rain, and exhaust contaminants. We deploy electrostatic 3-coat 70% Kynar 500 / PVDF fluorocarbon coatings and Qualicoat Class 2 super-durable architectural powder coatings with film thicknesses exceeding 65μm, backed by 20-year guarantees against chalking, fading, or micro-cracking.
Pressure Equalization & Cascade Drainage
Uncontrolled water leaks cost commercial building owners millions. Our shop front window suites incorporate engineered pressure-equalization chambers. By matching internal framing chamber pressure with external atmospheric wind gust forces, water is drained effortlessly via concealed weep baffles rather than driven into building interior finishes.
| Performance Criterion | Standard Commercial Storefront | DERCHI High-Performance Storefront | Compliance Test Benchmark |
|---|---|---|---|
| Alloy & Wall Thickness | 1.4mm – 1.6mm (6063-T5) | 2.0mm – 3.2mm structural (6063-T6) | GB/T 5237 / ASTM B221 |
| Structural Wind Load Resistance | 1.8 kPa – 2.5 kPa | Up to 4.5 kPa (AS 2047 N6 Cyclonic) | ASTM E330 / AS 2047 / EN 12210 |
| Water Ingress Prevention | 300 Pa static pressure | 600 Pa – 900 Pa cyclic test | ASTM E331 / AAMA 501.1 / EN 12208 |
| Acoustic Attenuation (Rw/STC) | STC 28 – 32 dB | STC 38 – 45 dB (Laminated IGU) | ISO 717-1 / ASTM E90 |
| Thermal Transmittance (U-Value) | Uf > 3.8 W/m²K (Non-thermal) | Uw 1.2 – 1.6 W/m²K (PA66 Barrier) | ISO 10077-2 / NFRC 100 / EN 673 |
| Security & Forced Entry | Basic single-point cylinder latch | Multi-point deadlock + anti-lift pins | PAS 24 / RC3 / EN 1627 |
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Recognized among China’s Top 10 architectural fenestration powerhouses, DERCHI integrates elite industrial R&D, heavy CNC automated machining, and rigorous export engineering support under a singular 180,000 m² campus in Shishan Town, Foshan.
By bypassing intermediaries and sourcing direct from our production base, commercial contractors, real estate developers, and overseas fenestration brands eliminate 20–35% in middleman markups while gaining full transparency over mill test certificates, structural calculations, and guaranteed production scheduling.
Frequently Asked Technical Questions (FAQ)
Critical answers for international facade consultants, commercial general contractors, and overseas importers sourcing shop front window solutions from China.
Q: How do you verify structural wind load calculations for high-span shop fronts?
Our engineering division carries out finite element analysis (FEA) and static moment of inertia calculations (Ixx and Iyy values) for all mullions. Based on your project’s geographical wind pressure ($W_k$), building height, and opening span, we size profile wall thicknesses (up to 3.5mm) or insert internal galvanized structural steel stiffeners to ensure glass deflection strictly remains within the structural limit of $L/175$ or $L/250$ in accordance with ASTM E1300 and AS 1288.
Q: Should retail shop front windows use thermally broken or non-thermal profiles?
For exterior envelopes in climate zones experiencing significant winter heating or intense summer cooling loads, thermally broken profiles with PA66 GF25 polyamide insulation strips are non-negotiable. They stop internal condensation, reduce thermal bridging, and satisfy strict municipal energy codes. For interior shopping mall tenant separations or benign equatorial climates without severe air-conditioning gradients, heavy-duty non-thermal systems can be specified to minimize project CAPEX.
Q: What glass configuration provides the highest retail visibility with optimal safety?
We recommend specifying double-glazed Low-Iron (Extra Clear) insulated units: 8mm Low-Iron Toughened + 16mm Argon Gas Spacer + 8mm Low-Iron Toughened with an interior soft-coat Low-E layer. Low-iron glass eliminates the greenish tint of standard float glass, providing true-to-life 89%+ visible light transmittance (VLT) for retail merchandise while delivering high solar heat rejection (SHGC ≤ 0.32) and sound reduction up to 40 dB.
Q: How do you safeguard precision storefront components from damage during ocean freight?
Every fabricated window and door frame is encased in electrostatic protective film, corners are shielded with heavy shockproof EVA foam protectors, and entire frames are wrapped in waterproof PE barrier sheets. All crating uses heat-treated IPPC ISPM-15 compliant fully enclosed plywood cases or A-frame steel shipping racks. We load containers with specialized air cushions to prevent container movement, guaranteeing zero maritime transit damage.
Q: Can DERCHI produce custom extrusion dies for proprietary architectural specifications?
Yes. In-house tool and die fabrication enables us to turn around prototype extrusion dies within 12–16 calendar days. Once the 3D cross-section drawing is approved by your architect, we cast sample profiles, execute mechanical tensile and surface finishing tests, and provide physical profile cross-sections via DHL for rapid site sign-off.
Q: What commercial warranty terms are provided for international project deliveries?
We deliver a comprehensive 10-year structural integrity warranty on aluminium profiles, a 15-to-20-year warranty on fluorocarbon PVDF surface finishes against peeling or chalking, and a 5-year replacement warranty on all commercial-grade operating hardware (handles, pivots, concealed overhead door closers, and multi-point locks) backed by our international spare-parts dispatch desk.
Accelerate Your Commercial Facade Procurement
Connect directly with DERCHI's senior facade engineering team in Foshan. Submit your CAD elevation files, door schedules, or structural wind load specifications for an exhaustive, line-item B2B manufacturing tender within 24 hours.
