Precision Fenestration & Architectural Glazing Systems
Fabricated with aerospace-grade 6063-T5 aluminium alloy extrusions, multi-point interlock kinematics, and certified insulating glass units (IGU). Fully customizable for global distributors, builders, and developers.
Top Brand Ultra Narrow Slimline Floor to Ceiling Folding & Sliding System
Mobile Home Double Glazed Soundproof Insulated French & Folding Doors
Flush Finish Touch Latch Aluminium Frame Inspection Access Panel

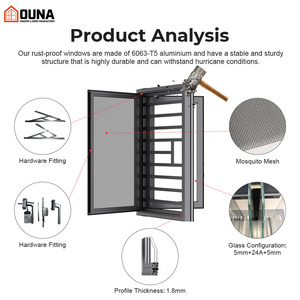

OUNA Hurricane Impact Thermal Break Tempered Glass Residential Door & Window

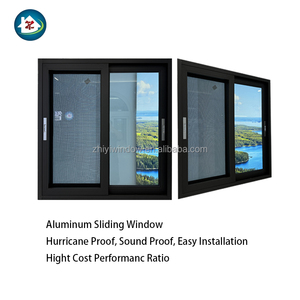

Impact Thermal Break Aluminium Sliding & Folding Door with Steel Screen
Modern Design Tempered Glass Aluminium French Entrance & Bifold Door
Aumegi Custom Color Thermal Double Glazing Glass Sliding & Stacking Door
Exterior Heavy-Duty Balcony Hurricane Proof Acoustic Bifold Sliding Patio Door
Aerospace-Grade 6063-T5 / T6 Aluminium Profiles
DERCHI (Guangdong Dejiyoupin Doors and Windows Co., Ltd.) establishes the industrial benchmark for heavy-duty architectural folding glass doors. Utilizing primary 6063-T5 and structural 6063-T6 virgin aluminium billet alloys, our profiles undergo rigorous high-pressure multi-die extrusion to ensure flawless structural integrity.
Unlike recycled, contaminated aluminium alloys prone to subsurface stress fractures under extreme wind loads, our profiles maintain a verified minimum wall thickness of 2.0mm to 3.0mm on all primary load-bearing stiles, rails, and jamb tracks. This superior metallurgy guarantees maximum deflection resistance (meeting L/175 and L/250 engineering criteria) under violent cyclonic pressures exceeding 4,500 Pa.
- Polyamide PA66 GF25 Thermal Barriers: 24mm to 34mm Technoform fiberglass-reinforced thermal struts effectively isolate indoor/outdoor conductive thermal bridges.
- Multilayer Architectural Anodizing & PVDF: Exceeding AAMA 2605 requirements with AkzoNobel fluorocarbon coatings that resist salt-fog corrosion, severe UV exposure, and environmental chalking.
- Corner Joint Matrix: Heavy-gauge cast aluminium corner cleats injected with German dual-component polyurethane structural bonding adhesive for leak-free, permanent 90-degree frame squaring.
Heavy-Duty Stainless Steel Quad-Roller Carriage Systems
The operational longevity of large-format folding doors hinges on mechanical kinetic distribution. DERCHI engineers custom-designed, bottom-weighted rolling systems supported by quad-bogie structural carriages. Each carriage integrates four CNC-machined SUS304/SUS316 stainless steel precision bearings encased in self-lubricating polyoxymethylene (POM) guide tires.
This kinetic engineering configuration evenly distributes sash weights up to 300 kg (660 lbs) per leaf across an extruded aluminium bottom sill with integrated stainless steel guide rails. The outcome is effortless, whisper-quiet glide operations achieving less than 15 N push-pull force, tested across 100,000 continuous cycle open-close simulations.
- Multi-Point Compression Locking: European-groove gearboxes driving stainless steel mushroom cams and shoot-bolts into hardened steel keeps along both vertical and horizontal perimeter axes.
- Continuous Multi-Lip EPDM Gasketing: Automotive-grade vulcanized EPDM seals maintain elasticity from -40°C to +120°C, delivering zero-gap acoustic and water barrier protection.
- Engineered Sub-Sill Weep Drainage: Concealed stepped-drain channels with one-way baffled flapper valves prevent wind-driven rainwater backflow under static pressures up to 700 Pa.
Tailored Fenestration Solutions by Project Typology
Selecting the exact structural configuration, glass thickness, and thermal break specification based on regional building codes, climatic exposure, and architectural design intent.
Coastal Luxury Villas & Resorts
Recommended: Heavy-Duty Thermal Break Bi-Fold System with 8mm+12A+8mm Low-E Argon tempered insulating glass units and marine-grade C5-M anti-corrosion powder coating. Integrated with fully flush, zero-step floor tracks for seamless transition to infinity pools and sea terraces.
Severe Cyclone & Hurricane Belts
Recommended: AS 2047 N6 & ASTM E1886/E1996 Impact Systems. Features 6mm Tempered + 1.52mm SentryGlas (SGP) + 6mm Tempered laminated glass panels paired with reinforced 3.0mm primary wall profiles, resisting windward and leeward cyclic pressure shifts up to +/-4500 Pa.
Commercial Hospitality & Banquets
Recommended: Acoustically Rated Top-Hung Multi-Leaf Partitions with STC ratings up to 42 dB. Eliminates ground threshold interruptions to allow smooth catering trolley transit while dividing extensive banquet spaces into sound-isolated VIP meeting zones.
Engineering Verification: System Specification Matrix
Compare technical thresholds across standard non-thermal, advanced thermal break, and extreme-load hurricane bifold door variants engineered by DERCHI.
| Performance Characteristic | Commercial Standard Series | Advanced Thermal Break System | Extreme Hurricane Impact Series |
|---|---|---|---|
| Aluminium Alloy Specification | 6063-T5 Extruded Primary Alloy | 6063-T5 / T6 High-Tensile Alloy | 6063-T6 Structural Marine-Grade |
| Primary Profile Wall Thickness | 1.8 mm – 2.0 mm | 2.0 mm – 2.5 mm | 2.5 mm – 3.2 mm Reinforcement |
| Thermal Transmittance (U-Factor) | 3.8 – 4.5 W/(m²·K) | 1.4 – 1.8 W/(m²·K) (PA66 Strut) | 1.2 – 1.6 W/(m²·K) (Triple IGU) |
| Acoustic Isolation (STC Rating) | STC 28 – 31 dB | STC 36 – 39 dB | STC 40 – 43 dB (Laminated DGU) |
| Structural Wind Load (Deflection) | Up to 2,000 Pa | Up to 3,500 Pa | Exceeding 4,500 Pa (AS 2047 N6) |
| Water Penetration Resistance | 300 Pa (Static Pressure) | 500 Pa (Baffled Drainage) | 700+ Pa (High-Leg Weep System) |
| Max Single Sash Dimensions | 900 mm (W) × 2,800 mm (H) | 1,200 mm (W) × 3,500 mm (H) | 1,400 mm (W) × 4,200 mm (H) |
| Carriage Capacity (Per Panel) | 120 kg (264 lbs) | 200 kg (440 lbs) | 300 kg (660 lbs) Heavy Quad |
Future Procurement & Sourcing Trends (2025–2030)
Crucial shifts shaping international supply chains, sustainability certifications, and fenestration prefabrication for wholesalers and general contractors.
Pre-Hung & Pre-Glazed Logistics
Global labor shortages in target import destinations (USA, Australia, UK, GCC) are accelerating demand for factory unitized, pre-hung folding doors. Wholesalers are prioritizing suppliers who pre-install glass, hinges, shoot-bolts, and weatherstripping in Foshan, reducing on-site installation labor costs by up to 60%.
Low-Carbon Aluminium Smelting
International environmental mandates (such as the EU Carbon Border Adjustment Mechanism - CBAM) mandate lower embodied carbon footprint. Progressive manufacturers are adopting hydro-powered aluminium smelting and certified green billet extrusion, paired with Environmental Product Declarations (EPDs) for LEED and BREEAM compliance.
BMS & Concealed Motorization
The convergence of luxury residential automation and commercial fenestration demands concealed micro-drives. Future-proof bi-fold designs incorporate synchronized in-frame servo motors capable of opening massive 12-meter, 8-panel folding configurations via wall switches, smartphone apps, or rain/wind sensory triggers.
Supply Chain Transparency
Tier-1 contractors demand audited trace-matrices: raw alloy source mill certificates, IGMA/IGCC insulated glass manufacturing tracking numbers, and live 360-degree factory audits. Direct partnerships with vertically integrated Foshan factories bypass intermediary margin layering while securing direct engineering warranties.
Why Global Importers Partner with DERCHI
Positioned within Foshan, China's premier architectural aluminium cluster, Guangdong Dejiyoupin Doors and Windows Co., Ltd. consolidates R&D, fabrication, testing, and international freight logistics.
One-Stop Fenestration
Consolidate custom bi-fold patio doors, matching ultra-slim casements, curtain wall facades, cast aluminium entrance gates, and garage doors in single 40ft HQ shipping containers, maximizing freight cube utilization.
Certified Compliance
Our internal laboratory subjects production batches to rigorous hydrostatic, air leakage, and cycle tests. Fully validated by CE, ISO 9001, AS 2047, and UL fire-rated certifications for straightforward local building inspections.
Full CAD / BIM Support
Our dedicated bilingual structural engineering department transforms architectural elevation drawings into detailed fabrication shop drawings, anchor detail schedules, and static wind load calculations within 48 hours.
Heavy Export Packing
Every sash receives protective peel-off film, corner foam buffers, and is encased within heavy-gauge, fumigated solid plywood crates or custom welded steel A-frames designed for secure forklift handling at destination ports.
Recognized by Global Standards Authorities & Third-Party Inspection Institutes
Frequently Asked Questions for B2B Importers
Addressing technical feasibility, international shipping logistics, structural wind engineering, and custom manufacturing tolerances with clarity and transparency.
Accelerate Your Project with Certified Bifold Fenestration
Partner directly with Foshan's leading manufacturer of high-performance aluminium folding doors. Send your project schedule, architectural elevations, or opening dimensions today. Our bilingual fenestration engineers provide comprehensive technical estimates, free CAD shop drawings, and FOB/CIF shipping proposals within 24 hours.
