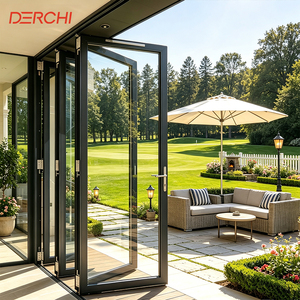

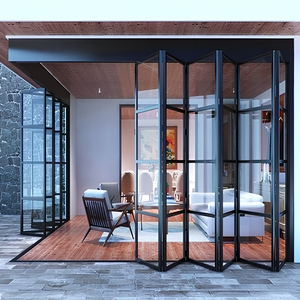

Featured Architectural Systems & OEM Openings

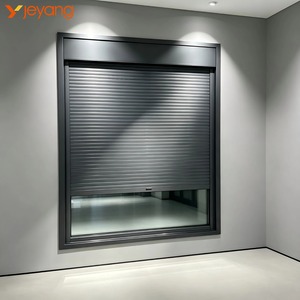

From custom single windows and cyclone-grade integrated roller shutters to panoramic patio enclosures, our automated Foshan lines engineer bespoke structural profiles built to global building code compliances.
Structural Architecture of High-Performance OEM Aluminium Single Windows
In high-specification residential towers, luxury coastal estates, and institutional envelopes, single-sash configurations—spanning single hung, single tilt-and-turn, and single-hung architectural casements—demand strict structural equilibrium, precision thermal isolation, and zero-compromise wind load resistance.
Selecting a qualified custom OEM aluminium single window manufacturer is fundamentally an engineering decision rather than a simple material purchase. A single-sash window concentrates mechanical tension, hinge gravity loads, and perimeter pressure differences into a continuous, singular framing structure. Unlike double-sash or multipanel sliding systems where wind pressure is distributed across intersecting interlocking stiles, a single window profile must independently resist deflection under extreme positive and negative air pressure conditions.
At our manufacturing facilities in Foshan, Guangdong, engineering begins with the chemical analysis of raw aluminium billets. DERCHI specifies virgin primary alloy 6063-T5 and structural 6063-T6 with controlled magnesium-to-silicon ratios (0.45–0.9% Mg, 0.2–0.6% Si). This ensures an ultimate tensile strength exceeding 205 MPa and yield strength beyond 170 MPa. By controlling profile wall thickness between 1.4mm for standard domestic installations and 2.0mm to 2.5mm for heavy-duty commercial single sashes, our extrusions meet and exceed Australian AS2047 cyclonic standards, US AAMA/WDMA/CSA 101/I.S.2/A440 benchmarks, and European CE standards.
Critical Information Gain: Thermal-Break Extrusion Dynamics
Standard uninsulated aluminium possesses a thermal conductivity (λ) of approximately 160 W/(m·K). DERCHI incorporates precision-knurled Polyamide PA66 GF25 (25% short glass-fibre reinforced) thermal insulation strips. This drops the composite frame conductivity to below 0.3 W/(m·K), completely interrupting indoor-outdoor heat conduction pathways and eliminating condensation risks even at temperature differentials (ΔT) exceeding 45°C.
Multi-Cavity Pressure Equalization
Internal rain-screen drainage baffles separate water-repellent chambers from wind-sealing cavities, neutralizing hydrostatic suction and achieving water tightness beyond 700 Pa.
Acoustic Decibel Mitigation
Equipped with warm-edge composite spacers, asymmetric laminated glass (6mm + 1.52PVB + 6mm), and triple-layer EPDM compression seals, reducing urban noise by up to 43 dB (STC 42+).
Structural Anodizing & PVDF Finishes
Surface treatments comply with AAMA 2605 and Qualicoat Class 2 specifications, utilizing AkzoNobel or PPG fluorocarbon coatings resistant to 3,000+ hours of continuous salt-spray corrosion.
Aluminium Single Window Procurement Trends (2025–2030)
Global supply chain leaders, fenestration distributors, and commercial contractors are shifting from spot buying to integrated OEM partnerships. Explore the macro forces shaping architectural window procurement.
Low-Carbon & Circular Billets
Institutional tenders in North America, Australia, and the EU increasingly mandate Environmental Product Declarations (EPDs). Sourcing certified low-embodied-carbon aluminium melted with hydro or solar power is becoming a mandatory requirement.
Ultra-Low U-Value Mandates
Stricter energy conservation building codes (IECC 2024, ASHRAE 90.1, and NCC 2022) demand complete window system U-factors below 0.22 BTU/(h·ft²·°F) [1.25 W/(m²·K)], compelling triple-glazing with warm-edge technologies.
Smart-Building IoT Integration
OEM single sashes are evolving from manual operation into active building sensors. Hidden chain-drive actuators, motorized micro-ventilation locks, and magnetic intrusion sensors are integrated directly inside extrusion profiles at the factory.
Pre-Glazed Unitized Assemblies
Rising on-site job labour rates in export destinations drive preference for factory dry-glazed single window frames. Complete units with sub-sills, fin frames, and factory-tested flashing eliminate contractor liability and on-site sealant failures.
Technical Specification Comparison: Standard vs. DERCHI OEM Custom
Transparent empirical data comparing conventional low-cost commercial windows with DERCHI architectural grade OEM single window systems.
| Performance Characteristic | Generic Commercial Tier | DERCHI Heavy-Duty OEM Specification | Test Methodology & Compliance Standards |
|---|---|---|---|
| Alloy Matrix & Wall Thickness | Recycled 6063 scrap, 1.1mm – 1.2mm | Virgin Billet 6063-T6, 1.8mm – 2.2mm | ASTM B221 / GB 5237.1-2017 Class A |
| Thermal Barrier Core | Uninsulated or Low-grade PVC Strip | Technoform PA66 GF25 Polyamide (24mm–34mm) | EN 14024 / ISO 10077-2 Simulation |
| Overall System U-Factor | U > 3.2 W/(m²·K) / SHGC ~0.48 | U ≤ 1.18 W/(m²·K) / SHGC 0.21 – 0.38 | NFRC 100 / 200 / ISO 12567-1 |
| Structural Wind Resistance (Design) | 1500 Pa (Standard Serviceability) | Up to 5000 Pa (N6 Cyclonic / DP 70+) | AS 2047:2014 / ASTM E330 / EN 12210 |
| Water Infiltration Resistance | 250 Pa – 300 Pa | 700 Pa – 1050 Pa Continuous Static | ASTM E331 / AAMA 501.1 / AS 4420.5 |
| Acoustic Attenuation (STC/Rw) | Rw 28 dB – 30 dB (Standard IGU) | Rw 38 dB – 44 dB (Asymmetric Acoustic IGU) | ASTM E90 / ISO 717-1 / ASTM E413 |
| Hardware Cycle Life Testing | 10,000 Cycles (Zinc Cast Die) | 50,000+ Cycles (Siegenia / CMECH 304 SS) | AAMA 901 / EN 13126-8 Grade 4 |
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Ranked among China's Top 10 High-End Architectural Fenestration Brands, Guangdong Dejiyoupin operates a monolithic 180,000 m² production complex in Foshan, integrating advanced R&D laboratories, robotic extrusion processing, and certified testing towers.
- 25+ Years of Export Manufacturing: Supplying prestigious residential towers, commercial developments, and private luxury estates across North America, Australia, Europe, the Middle East, and Southeast Asia.
- Comprehensive Testing Laboratory: In-house calibrated four-axis test chamber for instantaneous air leakage, dynamic water penetration, acoustic loss, and structural deflection testing before crating.
- End-to-End OEM/ODM Customization: In-house die-making engineering, profile extrusion anodizing, bespoke hardware integration, custom Vastu/feng-shui dimensioning, and CAD/BIM drawing validation.
- Full Building Envelope Synergy: Consolidate single windows with matching aluminium entry doors, panoramic bi-fold systems, glass curtain walls, and garage doors under one factory warranty.
Six-Stage OEM/ODM Engineering Protocol
Our streamlined manufacturing workflow eliminates fabrication discrepancies, accelerates lead times, and guarantees full compliance with your architectural specifications.
1. Architectural DFM Review
Our fenestration engineers analyze your schedule, wind-load ratings, and thermal parameters, generating detailed 2D CAD shop drawings and 3D BIM models for sign-off.
2. Extrusion & Die Engineering
Custom profile dies are cut in-house using CNC wire-EDM. Primary 6063 billets are extruded, homogenised, and heat-treated to precise T5 or T6 hardness standards.
3. Thermal-Break Rolling
Aluminium extrusions pass through automatic knurling machines, polyamide PA66 GF25 strips are inserted, and hydraulic pressure rollers crimp profiles into an integrated composite.
4. Robotic CNC Mitering & Assembly
German Elumatec 5-axis machining centres execute compound miter cuts, drainage slots, and hardware mortises with ±0.1mm tolerance, followed by cast corner-key crimping and sealant injection.
5. Glazing & Chamber Calibration
Automated argon-gas filling lines assemble double or triple Low-E insulated glass units. Windows undergo airtightness and water penetration pressure checks in factory chambers.
6. Heavy-Duty Ocean Packaging
Sashes receive protective PE surface films, corrugated corner armours, vacuum moisture-desiccant wraps, and are crated in steel-strapped OSB wooden crates designed for open-top or 40HQ containers.
Frequently Asked Questions for OEM Buyers & Importers
Detailed technical and commercial answers addressing cost structures, container loading, structural certifications, and custom tooling parameters.
For standard catalog profile systems, our minimum order quantity starts from just 50 m² or mixed containers with door systems. For entirely custom OEM dies, the MOQ is typically 1 metric ton of extruded aluminium. Die creation and sample extrusion approval require 12 to 18 days, with initial production runs completed within 25 days following sample confirmation.
DERCHI products are comprehensively tested and certified to multiple international standards. Shipments to Australia/New Zealand comply with AS 2047:2014 and AS 1288. Shipments to North America carry NFRC thermal simulation marks and AAMA/WDMA/CSA 101 structural approvals. Furthermore, our manufacturing facility maintains ISO 9001, CE EN 14351-1 compliance, and UL fire-rating certificates where specified.
Polyamide PA66 GF25 is engineered specifically with a coefficient of thermal expansion (∼2.8 × 10−5 /K) that closely mirrors architectural aluminium alloy 6063 (∼2.3 × 10−5 /K). By utilizing knurled internal teeth on the extrusion raceway and precisely calibrated hydraulic clamping rollers, we eliminate shearing stresses across extreme thermal cycles from −30°C in alpine winters to +60°C surface temperatures under direct desert sunlight.
Yes. Our hurricane-impact single windows incorporate reinforced wall thicknesses up to 2.5mm, heavy-duty multipoint steel mushroom locks, and laminated safety glass (e.g., 6mm tempered + 1.52mm SentryGlas Plus [SGP] + 6mm tempered). These assemblies pass missile impact Level D testing and cyclic wind fatigue testing up to ±4,500 Pa, satisfying Florida Building Code (HVHZ) and Australian Cyclonic Region C & D requirements.
We provide tier-one global hardware solutions to match regional customer expectations. Standard European systems utilize genuine German hardware brands including Siegenia, Roto Frank, and Hoppe. For architectural projects in North America and Australasia, we incorporate heavy-duty Truth Hardware, CMECH architectural mechanisms, or custom in-house stainless steel 304 friction hinges capable of carrying single sash weights exceeding 120 kg.
Every window frame is individually protected with custom PE blue surface films and high-density EPS corner caps. The entire assembly is sealed in heat-shrink plastic wrap containing silica desiccant bags to prevent moisture entrapment and white oxidation. Units are packed into heavy-duty non-coniferous plywood crates (ISPM 15 heat-treated compliant) with internal cushioning timbers to absorb dynamic marine pitching and rolling loads.
Upon receipt of architectural schedules or tender specifications, our design office generates comprehensive CAD shop drawings detailing extrusion cross-sections, glass bite depths, anchoring points, sub-frame flashing conditions, and structural deflection calculations. We also supply glass U-factor and SHGC spectral data sheets, finish coating warranty certificates, and finite-element structural analysis reports for local building authority sign-offs.
We operate flexibly under Incoterms 2020 including FOB (Foshan / Guangzhou / Shenzhen), CIF, CFR, and DDP (Delivered Duty Paid) to client project warehouses. Standard commercial terms are 30% T/T deposit upon shop drawing approval and 70% balance prior to container dispatch or against Irrevocable Letter of Credit (L/C at sight) for verified enterprise contracts.
Accelerate Your Fenestration Project with Factory-Direct OEM Precision
Submit your window schedules, architectural elevations, or custom profile specifications directly to our senior engineering team in Foshan. Receive itemized pricing, CAD shop drawings, and compliance reviews within 24 business hours.
