Engineered Architectural & Roller Systems Showcase
Our automated production lines deliver multi-chamber extruded profiles, thermal barrier closures, and severe-weather envelopes tailored for commercial developments, residential luxury, and logistical facilities worldwide.

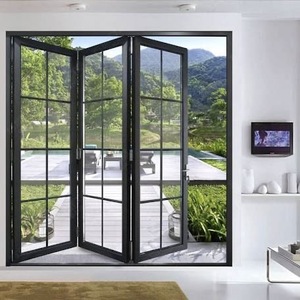

Thermal Insulation Aluminum Sliding Door for Hotel Patio Guangdong Aluminum Alloy
- Alloy: 6063-T5 High Purity
- U-Value: ≤ 1.8 W/m²·K
- Finish: Dual-color Fluorocarbon
USA Standard Outdoor Aluminum Vertical Stacking Door Double Tempered Glass Insulated Waterproof Patio Balcony Bi-Folding Doors
- Glass: 5mm+12A+5mm Tempered
- Track: Heavy-duty Concealed Roller
- Standard: ANSI/AAMA Verified

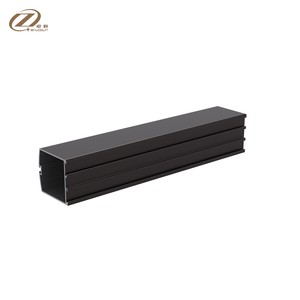

OEM 6000 Series Powder Coated Alloy Extruded Aluminum Custom Glass Door Frame With Welding & Bending Services
- Material: 6061/6063 Billet Series
- Tolerances: ±0.15mm CNC Machined
- Coating: AkzoNobel Interpon D2525
PRETTY HOUSE Modern Thermal Break Heat Insulation Insert Control Double Glazed Single Hung Window for House Apartment Villa
- Profile: PA66GF25 Insulating Strip
- Sound Attenuation: STC 38dB
- Application: Villa / Penthouse Envelope
Landsharp Customized 6 Foot Panel Sliding French Bifold Door Aluminium Bi Folding Door Exterior Folding Door Hardware
- Hinge: Stainless Steel 304 Multi-leaf
- Wind Resistance: Class 4 (EN 12210)
- Hardware: European Heavy Load Carriage

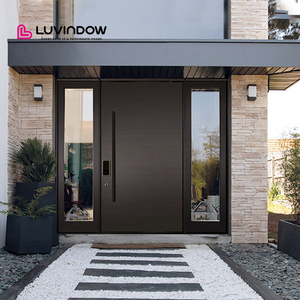

Modern Design Villas Black Profile Aluminum Frame Front Entry Pivoting Doors For Houses
- Pivot: German Dormakaba Floor Spring
- Locking: 5-Point Anti-Intrusion
- Dimensions: Custom Span Up to 4000mm

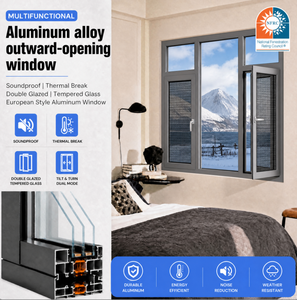

117 Series Aluminum Tilt Turn Windows Double Glazing Heat Insulated Hurricane Proof Aluminum Narrow Frame Tilt and Turn Window
- Rating: AS 2047 N6 Wind Certified
- Air Permeability: Level 8 (GB/T 7106)
- Profile: 2.0mm Multi-chamber Wall
LANGE Modern Aluminum Alloy Folding Door Folding Aluminum Sliding Doors For Residential And Commercial Patio Balcony
- Operation: Top-hung Smooth Gliding
- Weatherproofing: EPDM Continuous Gaskets
- Cycle Life: > 100,000 Operations
Engineering Architecture of Modern Aluminum Roller Shutters
High-performance overhead roll-up doors serve as critical structural, thermal, and security barriers in state-of-the-art warehouses, distribution hubs, commercial complexes, and luxury architectural garages.
Alloy Metallurgy & Slat Profiles
Unlike roll-formed steel that corrodes at raw punched edges, extruded aluminum slats (double-wall 77mm, 95mm, and 120mm profiles) undergo controlled thermal aging (T5/T6) to reach a Webster hardness of ≥12 HW. Extrusions can feature hollow vibration-dampening acoustic cavities or high-density rigid polyurethane foam injection (45-50 kg/m³ CFC-free) to provide structural rigidity and thermal resistance (R-values up to 4.2 hr·ft²·°F/Btu).
Surface Chemistry & Anti-Corrosion
Guangdong Dejiyoupin applies pre-treatment chromate-free passivation followed by architectural powder coating (Qualicoat Class 2 certified) or 70% Kynar 500 PVDF fluorocarbon coatings. In accelerated neutral salt spray testing (ASTM B117), our finishes surpass 3,000 hours without blistering, delamination, or filiform corrosion, providing critical service life in coastal marine environments and chemical storage facilities.
Smart Mechatronics & Automation
Our OEM configurations integrate precision-machined octagonal barrel assemblies containing high-cycle oil-tempered torsion counterbalancing springs (tested to 50,000+ operations) or direct-drive industrial side-mount motors with variable frequency drives (VFD). Operators achieve variable velocities up to 1.5 m/s with soft-start and soft-stop kinetics, integrating with Building Management Systems (BMS) via Modbus or dry contact interfaces.
Aluminum Roller Doors vs. Alternative Industrial Closures
Engineering trade-offs between extruded aluminum roll-up architectures, standard galvanized steel shutters, and overhead sectional doors for commercial and residential procurement specifications.
| Performance Metric | Extruded Aluminum Roller Door (DERCHI) | Standard Galvanized Steel Roller Shutter | PU Sandwich Sectional Overhead Door |
|---|---|---|---|
| Structural Deadweight | Low (~8.5-12.0 kg/m²) — Minimizes motor torque wear & structural load | High (~16.0-22.0 kg/m²) — Heavy motor stress & counterbalance fatigue | Moderate (~12.0-15.0 kg/m²) — Requires substantial ceiling track space |
| Corrosion & Salt-Spray Endurance | Superior (ASTM B117 >3000 hrs) — Zero ferrous oxidation | Poor to Fair — Edge rust occurs quickly when zinc skin is scratched | Moderate — Steel sheet edges vulnerable to galvanic corrosion |
| Lintel Overhead Clearance Needed | Compact (300mm to 450mm barrel roll) | Compact to Moderate (350mm to 550mm roll) | High (Requires horizontal ceiling track intrusion 3000mm+) |
| Wind-Load Resistance (EN 12424) | Class 4 to Class 5 with engineered wind-locks (>1500 Pa) | Class 2 to Class 3 (Curtain easily disengages under load) | Class 3 to Class 4 (Dependent on intermediate strut supports) |
| Acoustic Isolation (STC) | 28 dB to 34 dB (Dual-wall PU injected slats) | 18 dB to 22 dB (Single-skin non-insulated slats) | 24 dB to 28 dB (40mm sandwich panel configurations) |
| Architectural Customization | Anodized, PVDF, Woodgrain sublimation, Micro-perforation | Limited liquid paint or basic industrial powder coating | Standard polyester paint; limited profile modification |
Technological & Sourcing Trends Shaping 2025–2030
Global industrial supply chains are transitioning toward energy efficiency compliance, carbon footprint accountability, and smart building integration. Sourcing teams must anticipate these technical and regulatory shifts.
1. Low-Carbon Smelting & CBAM Compliance
With the European Union Carbon Border Adjustment Mechanism (CBAM) and North American ESG mandates entering full enforcement, tier-1 developers require Environmental Product Declarations (EPD). Modern aluminum roller door extrusion leverages hydro-powered green primary billets (A00 grade) combined with closed-loop industrial scrap recovery, reducing embodied carbon to below 4.0 kg CO&sub2;e per kg of finished aluminum alloy.
2. Edge-AI Telemetry & Cycle Diagnostics
Predictive maintenance is replacing reactive repair in automated distribution hubs. Drive motors now integrate onboard microprocessors monitoring real-time torque variances, curtain drag resistance, vibration frequencies, and component cycle counts. Cloud-connected IoT gateways transmit operational health data to facility directors, triggering preventive service alerts before mechanical failure causes logistical downtime.
3. Extreme Climate & Thermal Barrier Closures
Rising thermal extremes are turning uninsulated industrial doors into massive energy sinks. Next-generation aluminum roller doors feature polyamide (PA66GF25) structural thermal breaks within the slat profile, isolating exterior surface conduction from the interior climate. Combined with quad-fin EPDM perimeter guide seals, these systems achieve strict ASHRAE 90.1 and European EnEV building thermal envelope compliance.
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Operating from Shishan Town, Nanhai District, Foshan—the heart of China's premier architectural aluminum extrusion cluster—our state-of-the-art facility encompasses 180,000 square meters of integrated production capacity, backed by more than 25 years of engineering heritage and over 600 specialized production personnel.
From custom extrusion die development (turnaround within 7-10 working days) to CNC profile precision milling, robotic multi-point welding, and fully automated electrostatic fluorocarbon coating lines, we serve global importers, general contractors, and brand owners seeking high-volume reliability with customized flexibility.
Frequently Asked Questions for B2B Importers & Contractors
Direct technical and commercial answers addressing common engineering challenges, production tolerances, logistics protection, and custom OEM/ODM parameters.
