Engineered Sliding Doors & Architectural Fenestration Systems
Sourced directly from our ISO 9001, CE, and AS 2047 accredited manufacturing base in Foshan, Guangdong. Engineered for weather extremes, optimal daylight penetration, and structural wind resistance.

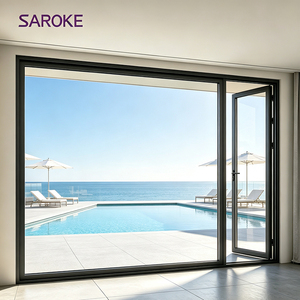

Laminated Glass Customizable Aluminum Swing Out Screen Doors for Houses
- 6063-T6 Extruded Billet
- Impact PVB Laminated Glass
Eco-friendly Aluminum Alloy Panoramic Sliding Door Double Glazed Tempered Glass Thermal Insulation Hospital Wine Cellar
- Double Glazed Argon Filled
- Ultra-Slim Interlock Sightline
Aluminum Glass Cabinet Door Profiles 45Mm Aluminium Cupboard Profile Aluminium Profile For Kitchen Cabinets
- Anodized 15-20 Micron
- CNC Precision Mitre Joins
Aluminum Swing Door Double Tempered Glass Exterior Glass Arch Casement French Doors
- Curved Thermal Profile
- Multi-Point Lock Security
Arch Style Aluminum Door with Side Windows Thermal Break, Fireproof, Soundproof, Waterproof French Style European
- Integrated Direct-Glazed Sidelite
- Polyamide PA66 Thermal Strut
Best Selling Double Hung Window Modern Large Aluminium Commercial Tempered Insulated Vertical Sliding Window for Kitchen
- Spiral Balance Suspension
- AAMA Certified Weatherseal
Modern One Piece Prehung Door Set Aluminum Stainless Steel Glawith Glass Side Pane Iron Gate Design Glass Half Glass Wooden Door
- Integrated Pre-hung Subframe
- Dual Acoustic Barrier Gaskets
Solid Aluminum Entry Gate Modern House Entrance Security Door Powder Coated Outdoor Durable Build
- Fluorocarbon PVDF Finish
- Anti-Corrosion Sea Coastal Grade
Engineering White Paper: Structural, Thermal, and Acoustic Integration of Sidelites
Specifying aluminium sliding doors with side windows (sidelites) requires a thorough comprehension of structural static loads, thermal boundary conditions, and continuous water-barrier mechanics. Sidelites, whether arranged as fixed flanking lites, coupled mullion units, or transomed lites above sliding tracks, dramatically alter the structural dynamics of fenestration openings. Unlike standard isolated slider panels, an integrated sliding-door-and-sidelite assembly must resist unequal wind-load deflections across operative and fixed interfaces while maintaining uninterrupted thermal breaks and water drainage paths.
Under international fenestration standards including AAMA/WDMA/CSA 101/I.S.2/A440 and Australian AS 2047, structural deflection must not exceed L/250 under positive and negative serviceability limit state (SLS) wind pressures, and must safely withstand ultimate limit state (ULS) pressures without hardware failure or glass fallout. To achieve this, our factory utilizes heavy-duty 6063-T6 architectural aluminium extrusions with nominal wall thicknesses up to 2.0mm to 3.0mm at major structural load-bearing transoms and mullions. The structural coupling between the sliding frame jamb and the fixed side window is fortified with reinforced internal steel or thick-wall aluminium mullion stiffeners, mitigating torsional flexing when massive active panels slide open.
Thermal Break Integrity
Equipped with 24mm to 34mm Polyamide PA66 GF25 thermal struts, separating indoor and outdoor alloy surfaces. Aligns glass plane insulation with profile thermal breaks to achieve overall window-door system U-values as low as 1.2 to 1.6 W/m²K.
Multi-Chamber Water Drainage
Incorporates independent stepped weep channels beneath the sliding tracks and fixed sidelite sills. Features concealed baffle valves preventing wind-driven back-siphonage under high dynamic air pressures up to 700 Pascals.
Acoustic Decoupling
Dual-glazed and triple-glazed configurations with asymmetrical glass sheets (e.g., 6mm + 12Ar + 8mm or PVB acoustic laminated layups) deliver sound transmission class (STC) ratings exceeding 42 dB, ideal for urban highway and airport perimeters.
Factory Engineering Benchmark: Sliding Doors with Sidelites
Examine how industrial-grade aluminium sliding door manufacturing compares against standard commercial grade systems across critical testing parameters.
| Specification Feature | DERCHI High-Performance Specification | Standard Export Commercial Grade | Compliance / Test Protocol |
|---|---|---|---|
| Alloy Metallurgy & Temper | Primary 6063-T6 or 6061-T6 High-Strength Billet | Secondary / Recycled 6063-T5 | ASTM B221 / EN 755-2 |
| Wall Thickness (Frame/Mullion) | 2.0mm – 3.2mm Heavy Structural Wall | 1.2mm – 1.4mm Thin Gauge | AS 2047 / GB 5237-2017 |
| Structural Sidelite Coupling | Concealed Structural Steel Reinforcement Splines | Direct Surface Face Screwed Mullions | AAMA 101 Deflection < L/250 |
| Glazing Architecture | Double/Triple Tempered Low-E + Argon + Warm Edge | Standard Clear Single or Double Tempered | IGCC / CE EN 1279 / AS 2208 |
| Roller Track Load Bearing | Dual Tandem Stainless Steel 304/316 (Up to 400kg) | Plastic / Zinc Alloy Rollers (Max 120kg) | 100,000 Cycle Durability Test |
| Water Tightness Rating | Pressure-Equalized Weeping (Pass > 700 Pa) | Standard Slot Weeping (Fails ~ 250 Pa) | ASTM E331 / EN 12208 (Class 9A) |
| Surface Protective Coating | AkzoNobel Powder Coat / PPG PVDF (3-Coat, 20-Yr Warranty) | Standard Electrostatic Powder (Non-Warranted) | AAMA 2605 / Qualicoat Class 2 |
Direct Factory Capabilities & Export Infrastructure
Operating a modernized 180,000 square meter fabrication facility in Foshan, Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) combines automated CNC profile machining, robotic corner crimping, and precision glazing to serve global developers.
One-Stop Fenestration Manufacturing
From heavy sliding systems and casement sidelites to pivot doors, cast entrance doors, and curtain walls, consolidate diverse structural orders within one unified production schedule to drastically cut freight overhead.
Stringent International Certifications
Our engineering portfolio is tested and verified by independent bodies, holding CE, ISO 9001, AS 2047 N6 cyclonic credentials, and UL fire performance ratings, providing verified test paperwork for rapid municipal permit clearances.
CAD/BIM Custom Engineering
Our dedicated R&D engineering department furnishes complimentary shop drawings, finite element stress analysis for structural transoms, and BIM parametric models matching architectural elevations and schedule requirements.
Triple-Layer Export Sea Crating
Pre-hung assemblies and knock-down panels are preserved using peel-resistant protective film, corner impact armor, high-density EPE foam wrapping, and fully enclosed solid non-coniferous plywood crates ready for multi-port ocean transit.
Future Sourcing Trends for Aluminium Sliding Doors & Sidelites
As commercial and high-end residential architecture shifts toward net-zero targets and seamless indoor-outdoor connectivity, architectural procurement strategies are rapidly adapting.
1. Minimalist Sightlines with Recessed Concealed Frames
Architects are aggressively specifying ultra-slim panoramic sliders where outer frames and side window transoms are embedded directly within structural plaster and sub-floors. Visible interlock sightlines have dropped from conventional 60mm profiles down to 18mm–24mm high-moment structural carbon-reinforced aluminium profiles, maximizing unhindered daylight transfer while sustaining wind loads.
2. Motorized Automation & Smart Building IoT
Bespoke sliding leaves weighing upwards of 400kg to 800kg now demand concealed brushless DC electromagnetic linear motorization. Smart sidelites frequently incorporate integrated motorized micro-louvers or electrochromic switchable PDLC privacy glass managed centrally via BACnet, Modbus, or residential automation platforms.
3. Low-Carbon Metallurgy & Circular Certification
Global procurement teams now require Environmental Product Declarations (EPDs) demonstrating low embodied carbon. Utilizing scrap-recycled billet extrusions powered by renewable hydroelectric smelting allows modern architectural aluminium profiles to deliver structural resilience with carbon intensity ratings below 4.0 kg CO₂ per kg of aluminium.
Frequently Asked Questions for Project Specifiers & Importers
Clear, direct answers regarding structural calculations, tropical weather resilience, customization tolerances, and international export logistics.
How do integrated sidelites affect the structural static load calculation of the sliding door system? +
What thermal break technology is used to prevent condensation in coastal or humid tropical regions? +
How does the factory prevent water ingress along flush floor sliding thresholds during monsoons? +
Can your export manufacturing team provide fully customized shop drawings matching local architectural elevations? +
What export ocean shipping terms and container consolidation methods do you provide? +
What hardware and multi-point security mechanisms are integrated into your sliding systems? +
Launch Your Architectural Sourcing Project Directly With the Factory
Whether you require custom CAD drawings for high-wind residential villas, commercial resort sliding suites, or containerized wholesale profiles, our export engineering department responds within 24 business hours.
