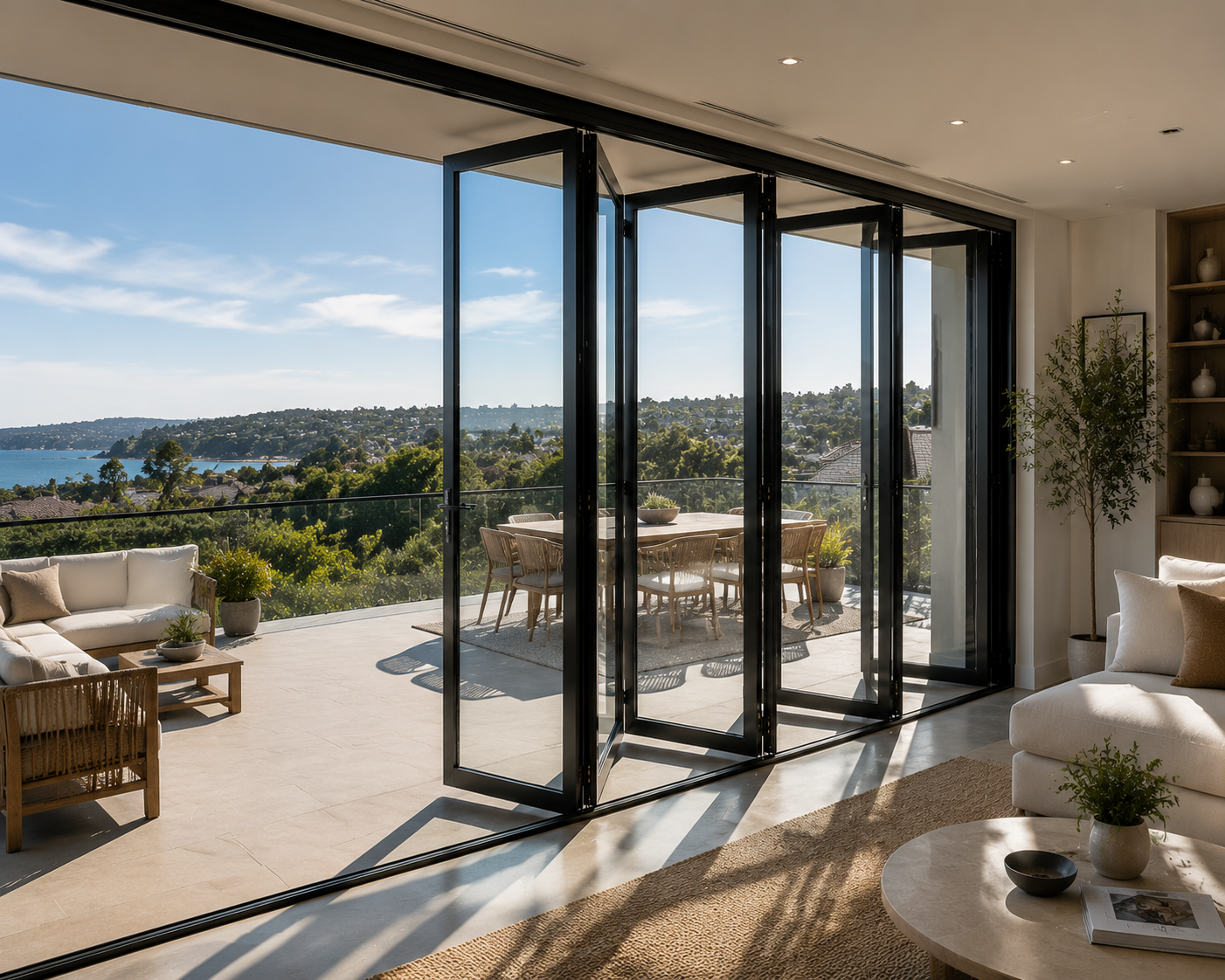

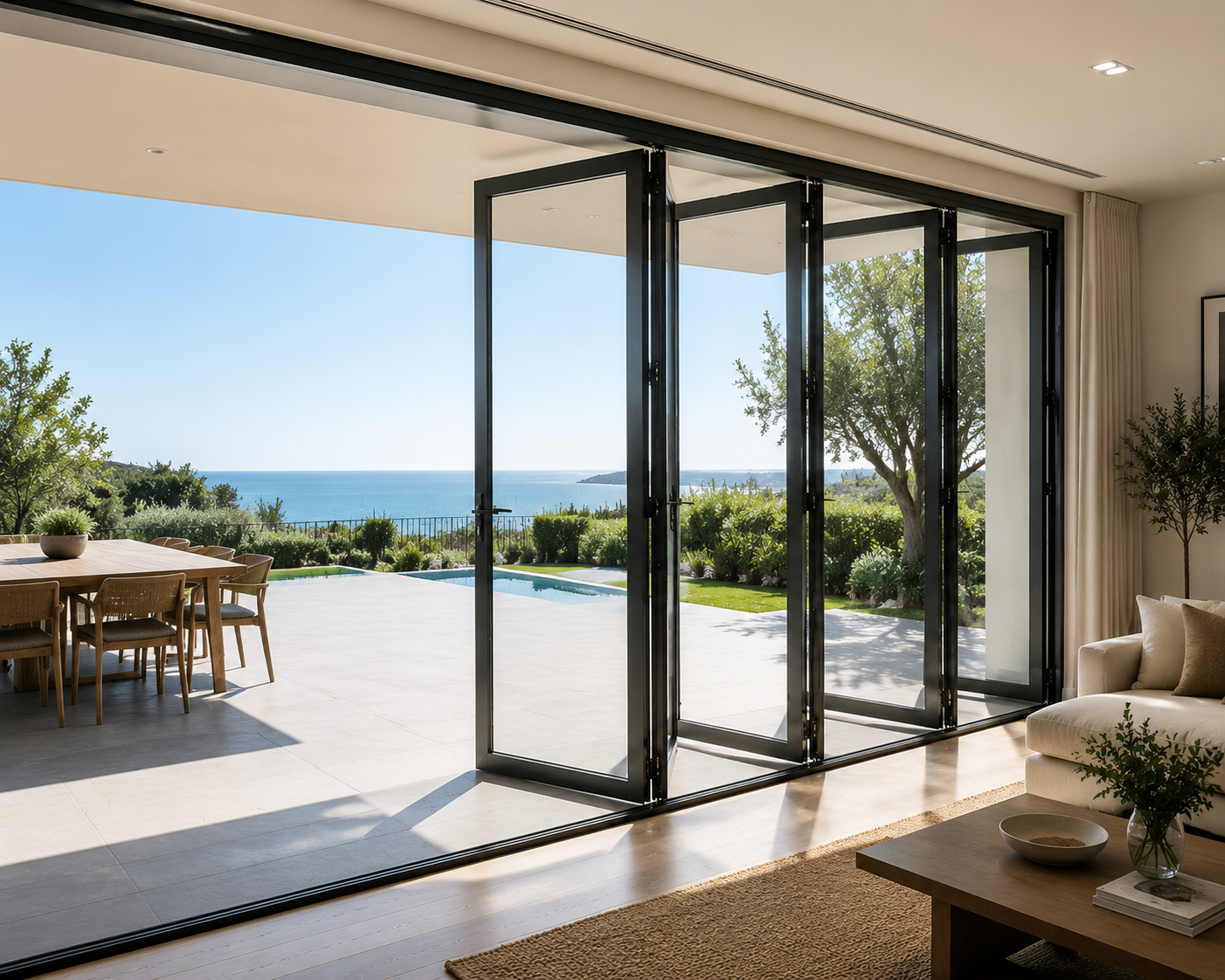

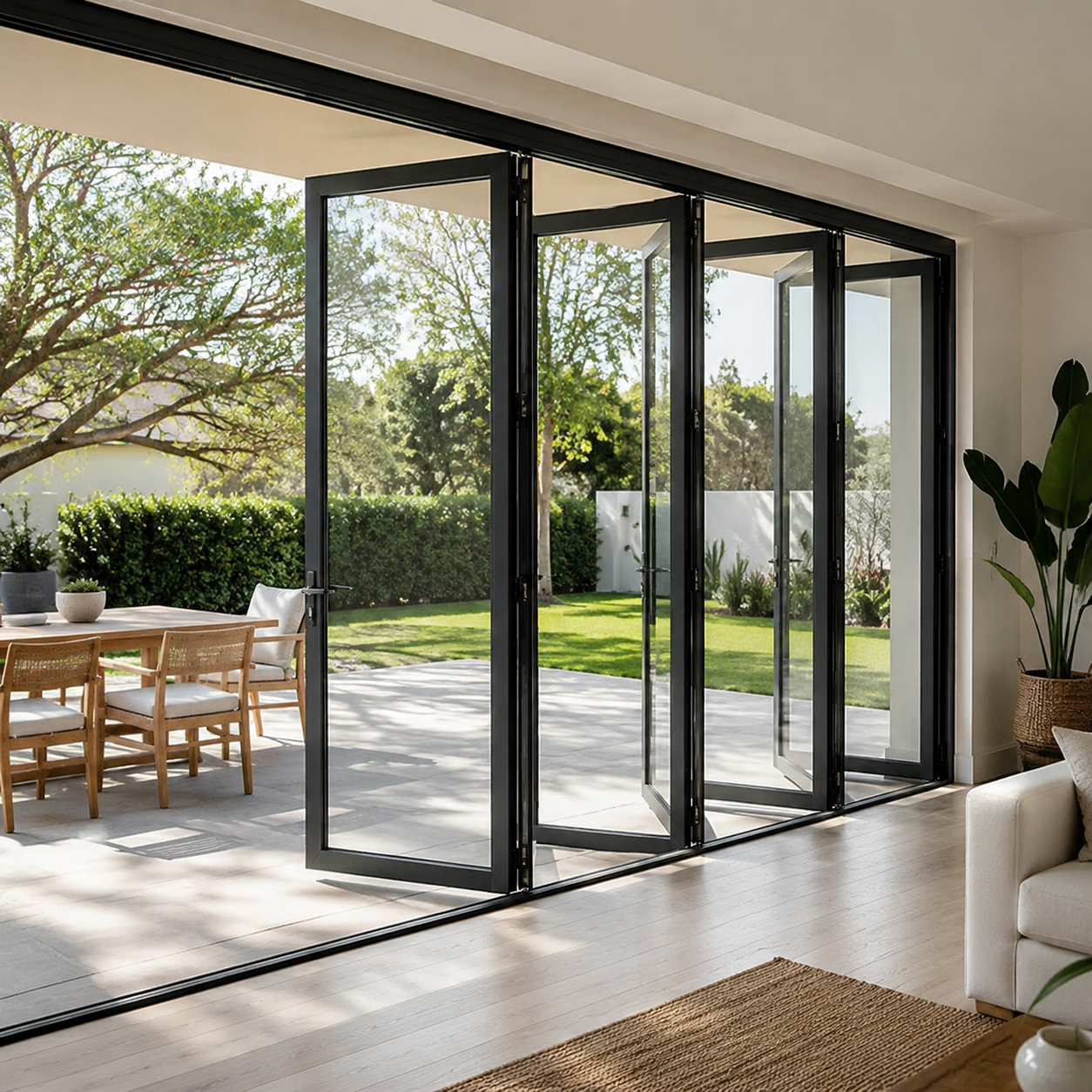

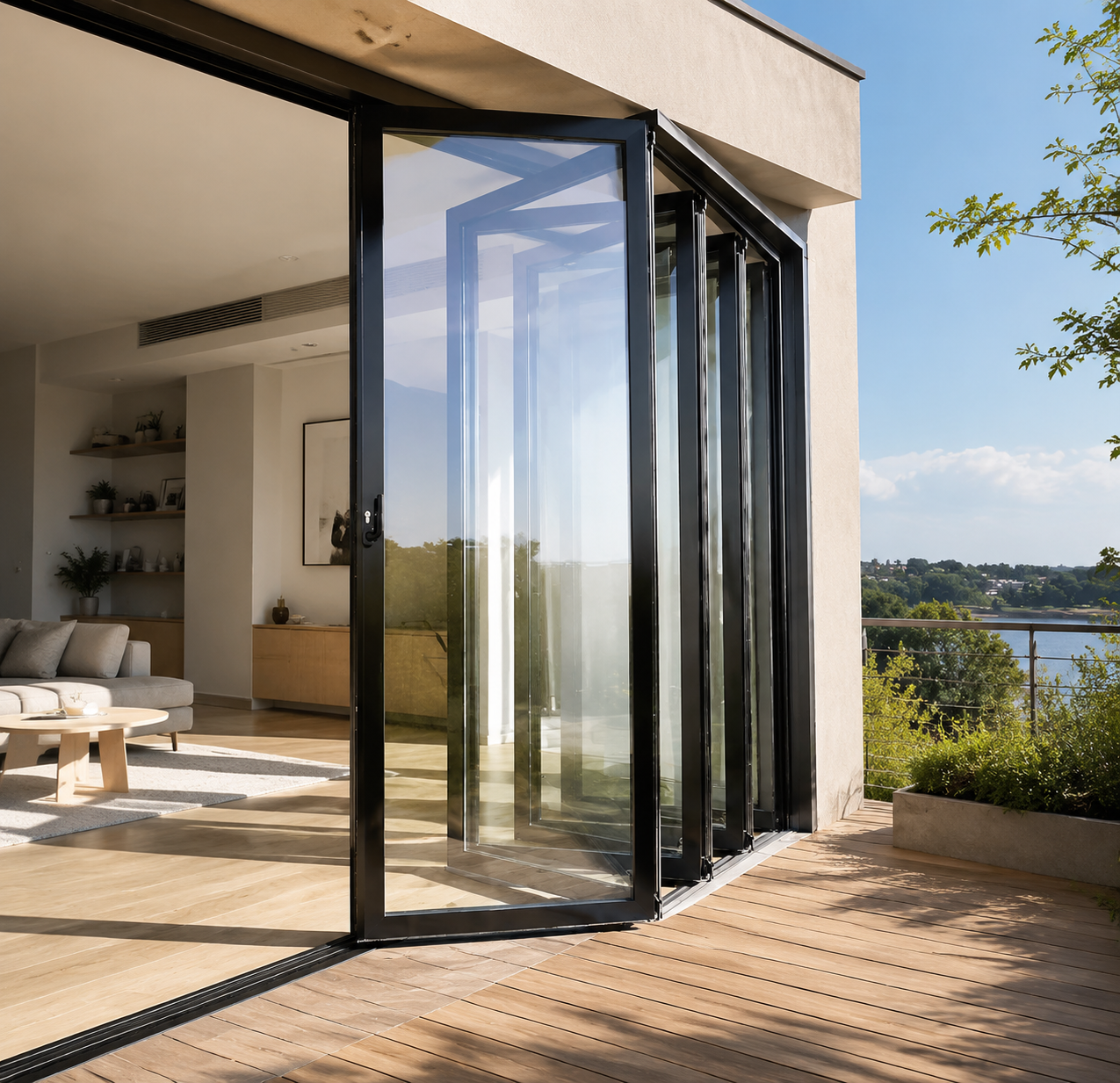

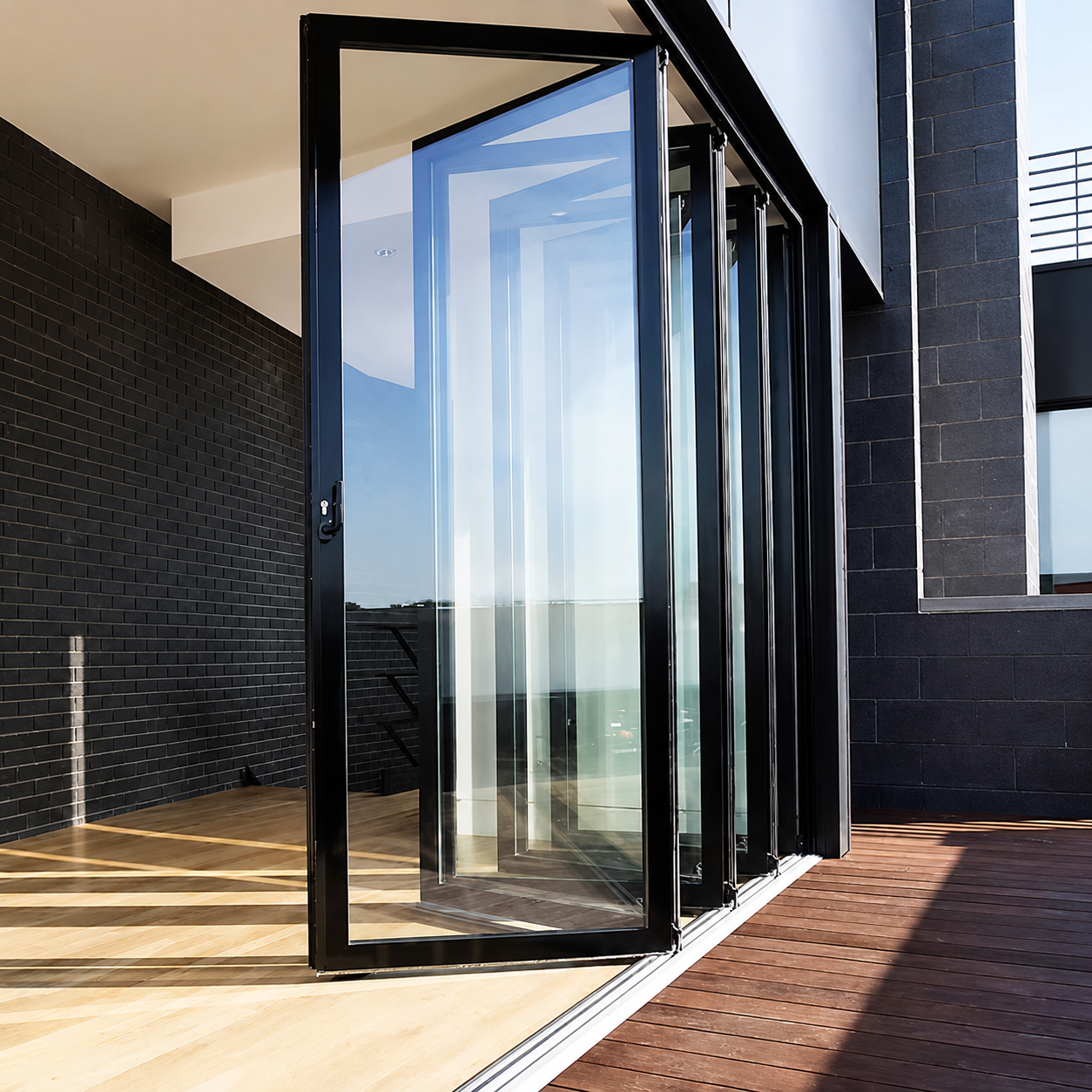

AOSTTER NFRC Aluminium Accordion Door Thermal Break Double Glazed Soundproof Exterior Bi Folding Sliding Patio Bifold Door
Product Description
Product Highlights
Direct Factory & AS2047 Certified
Backed by a 30,000sqm smart facility, offering heavy-duty aluminum bifold doors with direct pricing to maximize project profit margins.
Top-Hung Heavy Load Roller System
Integrated with premium stainless steel rollers supporting up to 150kg per leaf, ensuring effortless gliding and zero sash dropping.
Extreme Weather Sub-Sill Drainage
Specialized hidden drainage bottom track and triple EPDM gaskets guarantee zero water leakage during horizontal rainstorms.
Advanced PA66 Thermal Break
High-density polyamide insulation strips substantially reduce thermal transmittance, meeting stringent energy-efficient codes.
6063-T5 Aviation-Grade Profile
Constructed with 2.0mm reinforced wall thickness, capable of withstanding 5000Pa hurricane wind loads for high-rise commercial safety.
Fortress-Grade Multi-Point Security
Equipped with high-security multi-point locking mechanisms and anti-lift brackets to prevent unauthorized forced entry.
Professional CAD Engineering Support
100% bespoke customization with comprehensive shop drawings issued within 24 hours for seamless development integration.
Door Specifications
| System Type | Thermal Break Aluminum Bifold / Folding Door |
| Profile Grade | Aviation-Grade 6063-T5 Aluminum Alloy |
| Wall Thickness | 2.0mm - 2.5mm Heavy Duty Extrusion Profile |
| Thermal Break | PA66 Polyamide Insulation Strips |
| Roller System | Top-Hung Stainless Steel Rollers (Max 150kg/Leaf) |
| Bottom Track | Flush Sill / Weather-Resistant Sub-Sill Options |
| Glass Spec | 5mm+12Argon+5mm Double Tempered Low-E IGU |
| Wind Pressure | ≥ 5000 Pa (Hurricane Impact Resistant) |
| U-Value | ≤ 1.2 - 1.8 W/(m²K) (High Energy Efficiency) |
| Sound Insulation | 35dB - 42dB (STC Grade 4) |
| Airtight & Watertight | Class A Standard (Zero Leakage under 700Pa) |
| Hardware System | German ROTO / HOPO Multi-point Locking |
| Surface Finish | Marine-Grade AkzoNobel Powder Coating / PVDF |
| Compliance | AS2047, NFRC, AAMA, CE Certified |
| Warranty | 15 Years Structural; 10 Years Hardware |
Window Specifications
| Product Name | Aluminium Bifold Window / Folding Window / Servery Window |
| System Type | Top-Hung / Bottom-Rolling (Optional) |
| Material | Aviation-grade 6063-T5 Thermal Break Aluminum |
| Glass Type | Tempered Double Glazed IGU (Low-E Coating) |
| Opening Direction | Left / Right / Split / One-side Stack |
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
We are a 100% source manufacturer. We own a 30,000 sqm modern factory with an annual production capacity of 500,000 sqm. We warmly welcome you to inspect our factory via video call or visit us in person.
Q: Can you customize windows and doors according to my project sizes and designs?
Absolutely. We specialize in OEM & ODM for global projects. Just send us your floor plans or specific measurements, and our engineering team will provide a Free 3D Design & Shop Drawing within 24 hours. RAL/Pantone customized colors are also supported.
Q: What kind of packaging do you use to ensure safe transportation?
We use Export-Standard Safe Packaging to guarantee zero damage. Inside, we apply protective film and shockproof EPE foam. Outside, we pack the products in fully sealed, non-fumigation plywood crates. Your glass and frames are 100% safe with us.
Q: How do you guarantee the quality and energy efficiency of your products?
We use high-precision 6063-T5 aluminium profiles and premium PA66 thermal break nylon strips. This multi-cavity structure provides excellent sound insulation, heat preservation, and wind resistance, significantly reducing your HVAC energy costs.
Q: What is your standard production lead time?
For standard configurations and colors, the lead time is about 15-25 days after the deposit is received and shop drawings are confirmed. For special customized colors or large-volume project orders, it takes around 30-35 days.
Q: What kind of quality warranty do you provide?
We offer a 10-year warranty for our aluminium profiles and a 5-year warranty for hardware accessories. If any quality defects occur within the warranty period under normal use, we will provide replacement parts free of charge.
