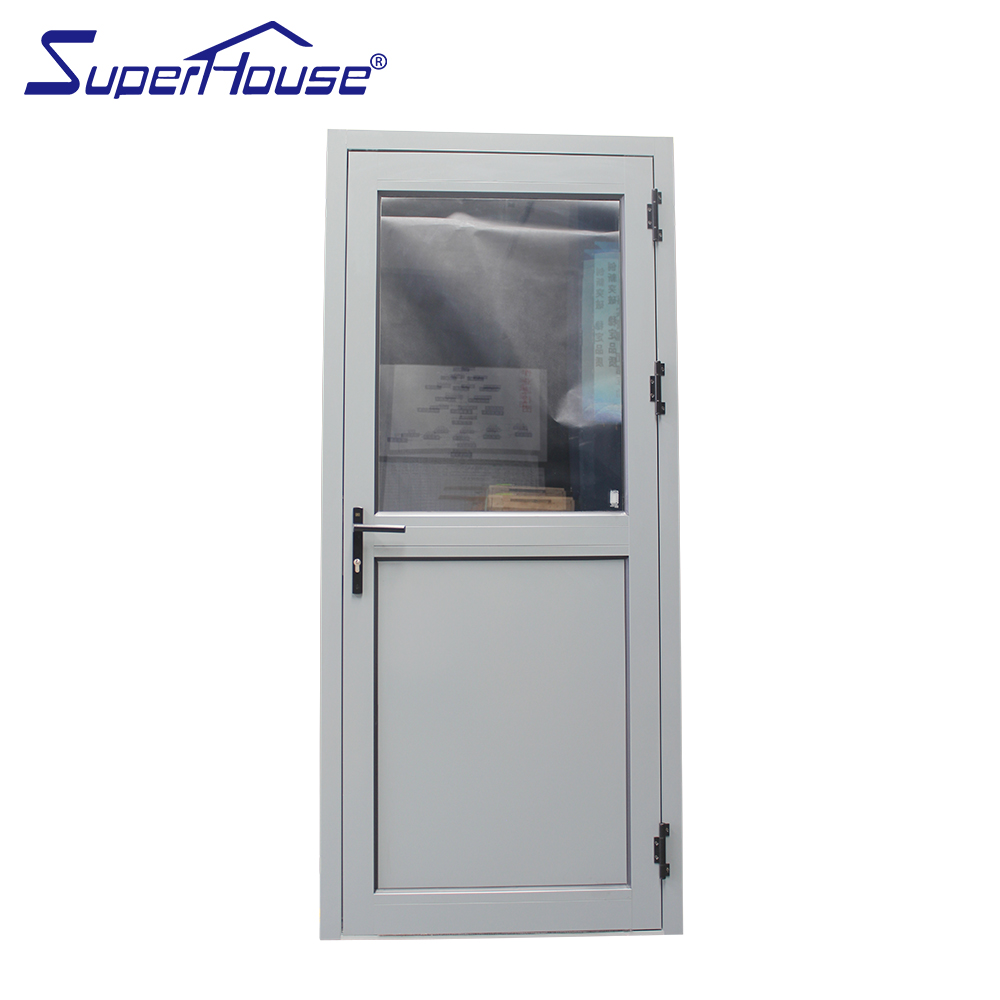

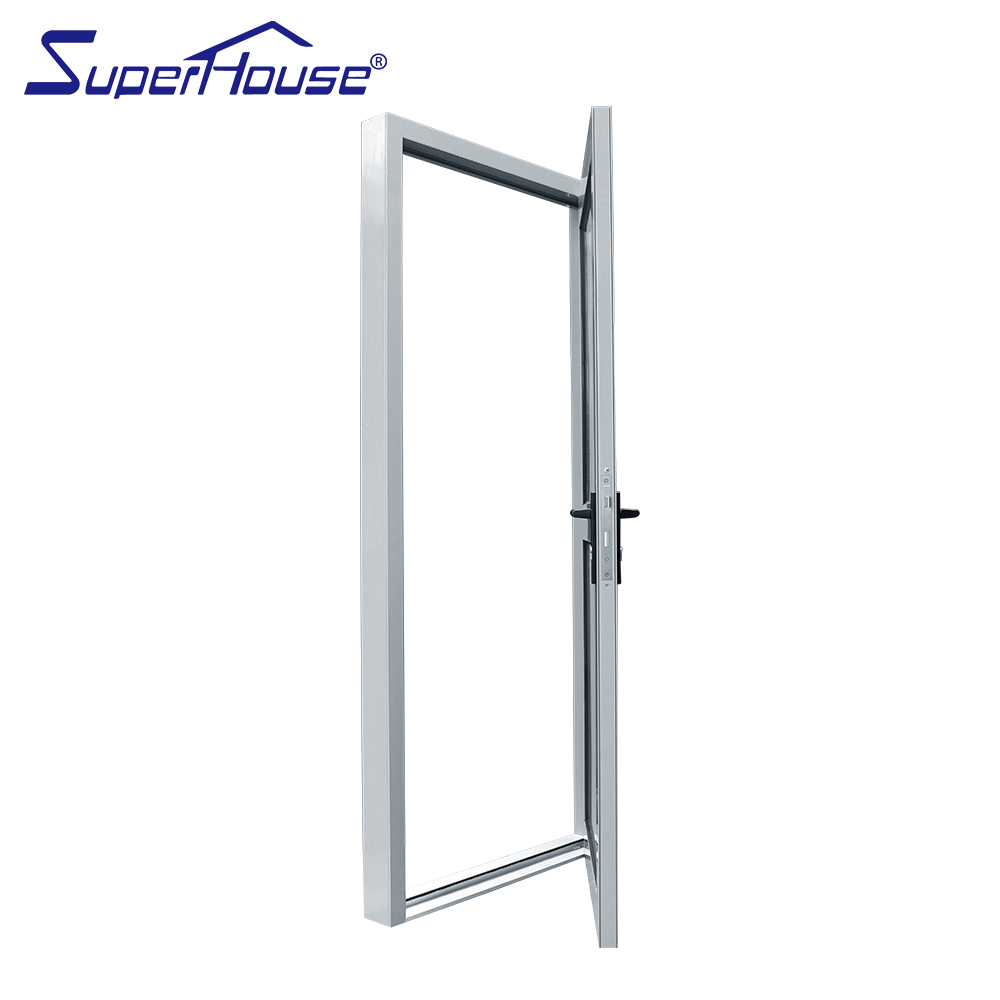

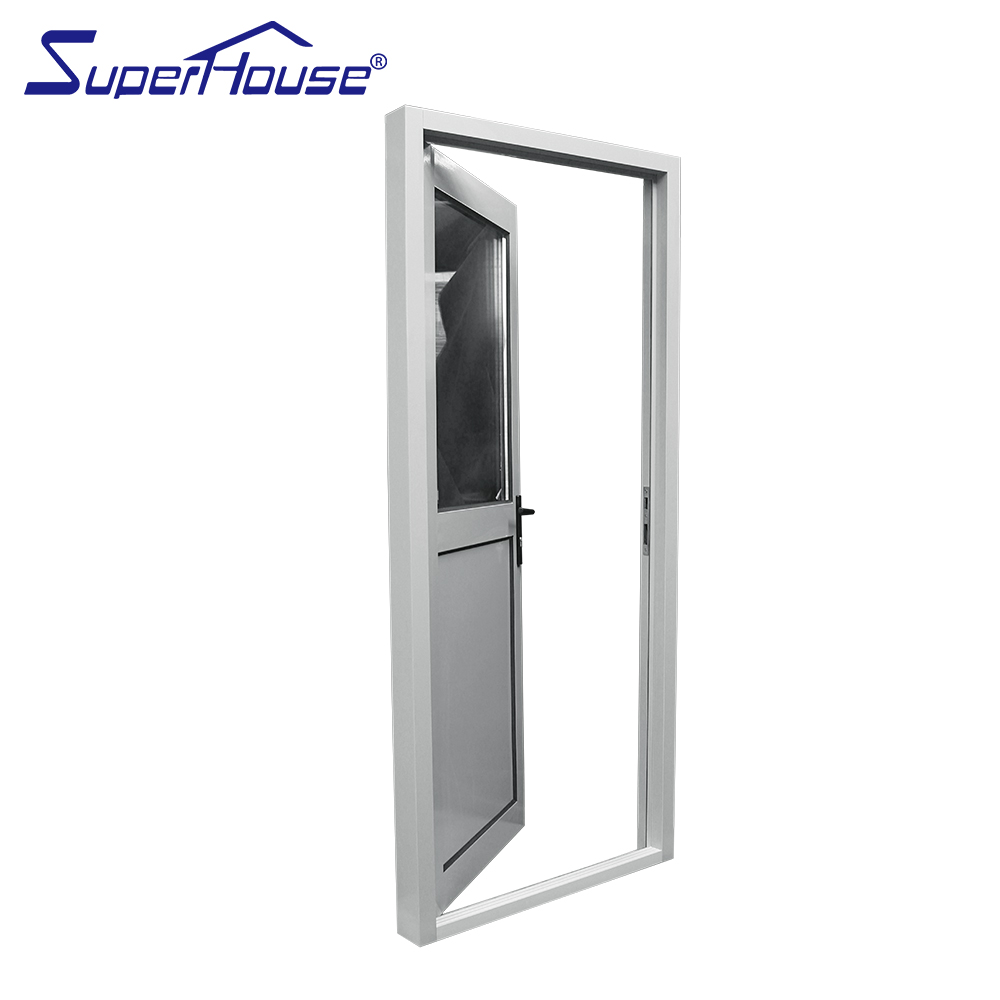

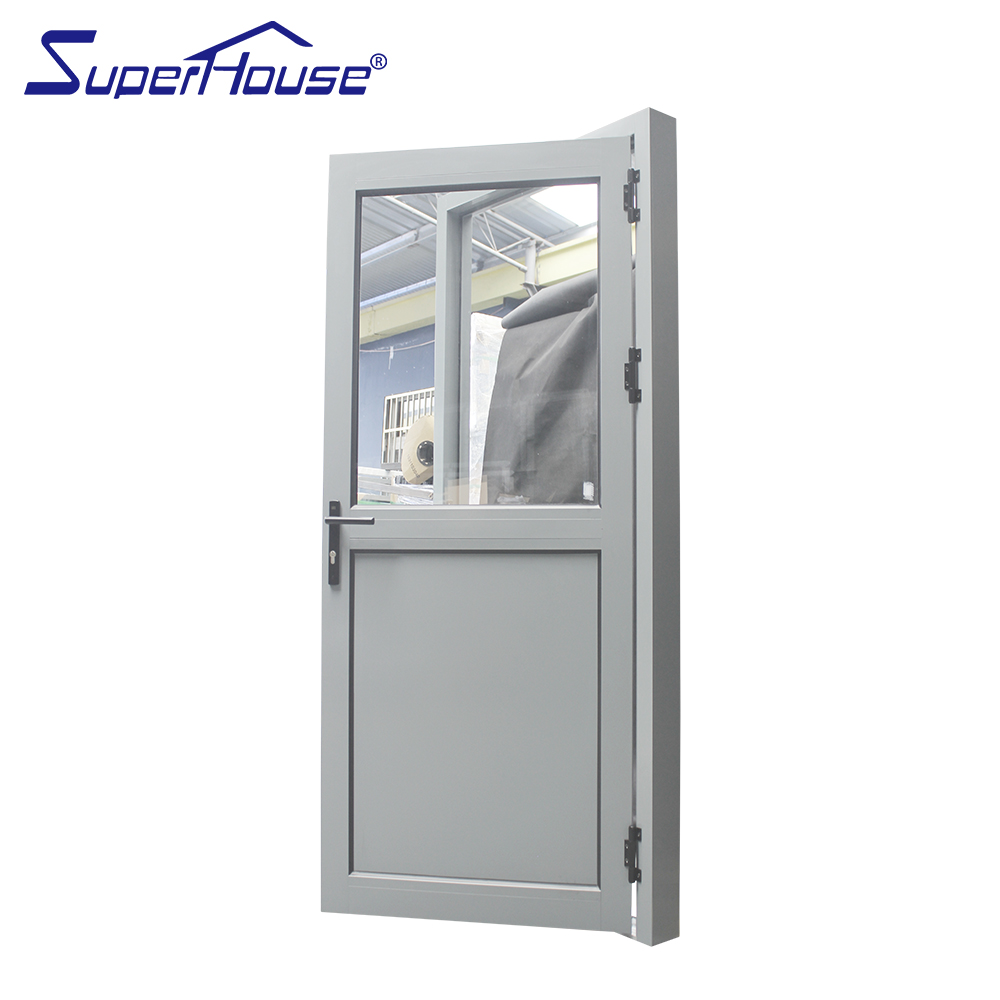

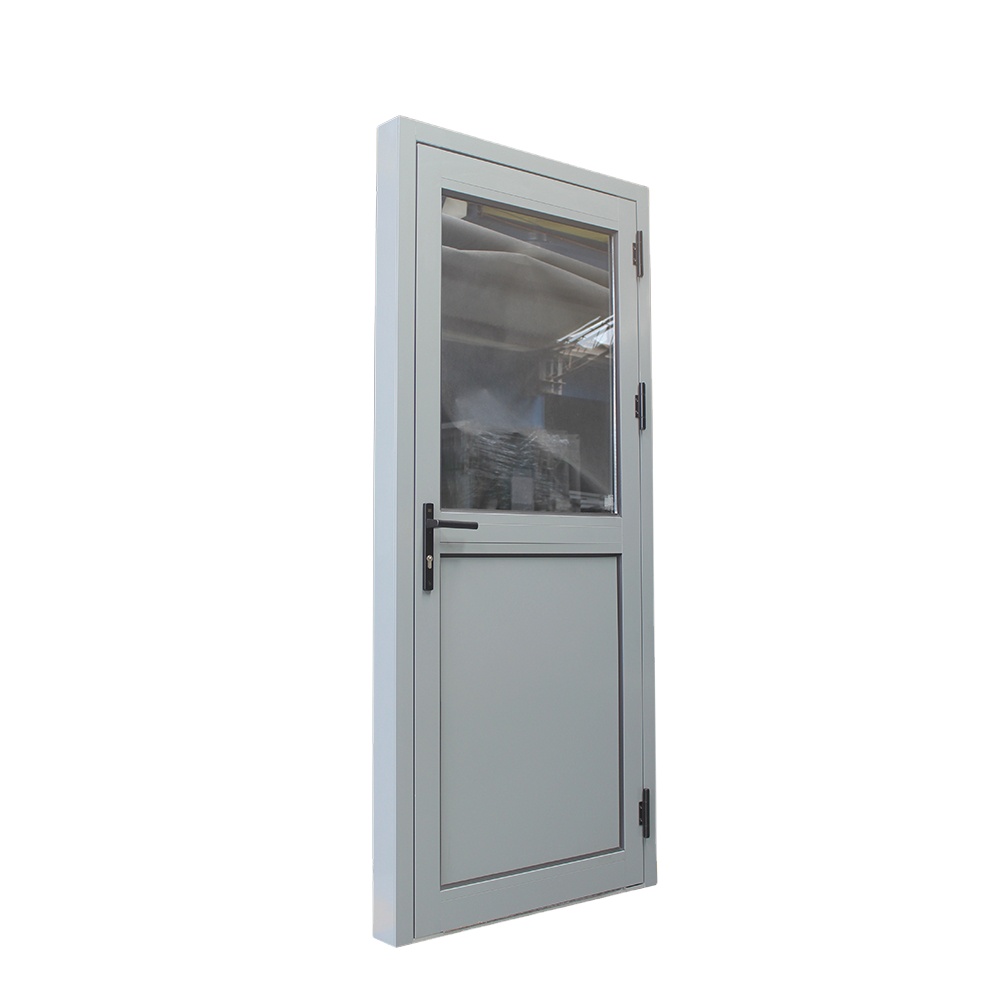

AS2037 NFRC Half Glass Half Aluminum Casement Door
Product Description
Aluminum hinged door, has a hinge to fix the door frame, and the hinge of the swing door is installed beside the door, so that the door can be opened inward or outward. The material of the aluminum alloy is relatively durable in the door material, so it is popular.
Aluminum swing door is also divided into a single door and a double door. A single door requires only one door plate, and the door opening method is opened or opened in one direction. Double door opening requires two door panels, which are opened in both directions when opening the door.

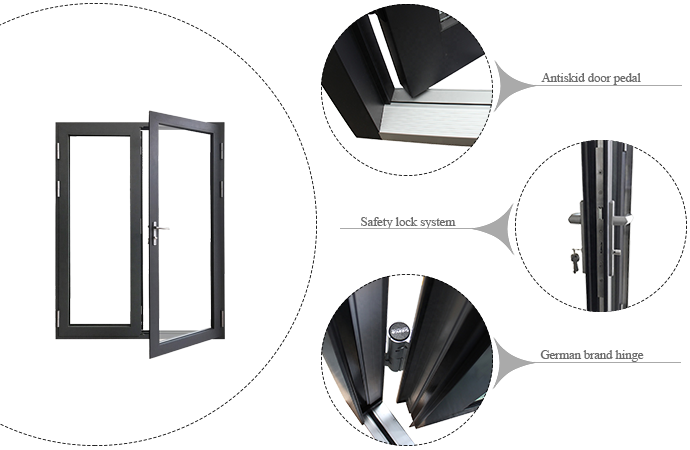

Key Advantages of Aluminum Alloy Swing Doors
First of all, the aluminum alloy itself has good plasticity and is easy to process. Secondly, the corrosion resistance ratio of the aluminum alloy is very strong, and the service life of the door is long. The high-end aluminum alloy swing doors are mostly double-layer hollow design, which not only has very good sound insulation effect, but also has air tightness and water tightness.
Product Specifications
| Profile | Type | Aluminium 6063-T5 & 6063-T6, or customized |
|---|---|---|
| Thickness | 2.0mm, 2.5mm | |
| Color | Grey, black, etc. | |
| Glass | Type | Toughened, tempered, frosted, single, double, triple, etc. |
| Color | Blue, Transparent, European grey, glazed colour, etc. | |
| Surface Treatment | Powder coated, PVDF, anodized | |
| Hardware | Australian hardware | |
| Europe brand hardware | ||
| Top Chinese hardware | ||
| Screen Netting | Fiberglass | |
| Stainless steel | ||
| Opening Style | Sliding, hinged, folding, fixed, tilt and turn, awning, hung, electrical | |
| Others | According to your requirements | |
Different Buyer, Different Choice.
In the past few years, Superhouse exported various kinds of aluminium hinged doors, including residential doors, commercial doors. We are capable of customizing any kind of aluminium hinged doors according to customer's demand. Here are some exported products shown below.
In general, most of us spend much time indoor, however, the complexity and variety of the outdoor natural environment cause much trouble to our indoor office and life, including cold, heat, noise, hurricane, impact, rainstorm, and so on.
The doors and windows bring us sunshine, ventilation, beauty, good view, but it is also a weak place for the house to withstand extreme outdoor conditions. Therefore, choosing high performance windows and doors for your house, you will get a safe and comfortable indoor environment.
Superhouse P80 System
Superhouse P80 System has excellent heat insulating function, which belongs to our star system with very high quality and with kick plate. It can realize inwards opening, outwards opening, low doorsill and high doorsill. Available with designs for lift & sliding door, and bi-folding door. Also there are different kinds of hardware to choose and it can meet C and U Groove with multi-point locking systems.
Technical Data & Performance
Technical Dimensions
Visible Width (Frame)
51.2 mm
Visible Width (Sash)
81.5 mm
Profile Depth (Frame)
79 mm
Profile Depth (Sash)
89 mm
Depth of Glass Groove
27 mm
Glass Thickness
25 mm
Performance Ratings
Thermal Insulation
U ≤ 1.4 W/m²K
Acoustic Performance
≤ 45 dB
Air Tightness
≤ 0.4 m³/(m²h)
Wind Load Resistance
≥ 0.5 KPa
Water Penetration
≥ 600 Pa
Frequently Asked Questions (FAQ)
1. What configurations are available for aluminum swing doors?
Aluminum swing doors are available in both single-door and double-door configurations. They can be engineered for inward opening, outward opening, and configured with either low or high doorsills.
2. Why choose aluminum alloy for hinged doors?
Aluminum alloy provides exceptional durability, strong corrosion resistance, and high structural plasticity for processing. Paired with double-layer hollow designs, it ensures outstanding thermal insulation, soundproofing, and weather resistance.
3. What are the key performance metrics of the Superhouse P80 System?
The P80 System provides thermal insulation at U ≤ 1.4 W/m²K, acoustic insulation up to ≤ 45 dB, air tightness ≤ 0.4 m³/(m²h), wind load resistance ≥ 0.5 KPa, and water penetration resistance ≥ 600 Pa.
4. What glass and hardware customization options are supported?
Glass choices include toughened, tempered, frosted, single, double, or triple glazing in clear, blue, European grey, or glazed tints. Hardware options include Australian hardware, European brand hardware, and top Chinese hardware compatible with C/U groove multi-point locks.
5. Can these doors withstand extreme weather conditions?
Yes, the systems are designed with high air- and water-tightness alongside robust wind-load resistance to shield interiors against cold, intense heat, hurricanes, impact, rainstorms, and exterior acoustic noise.
