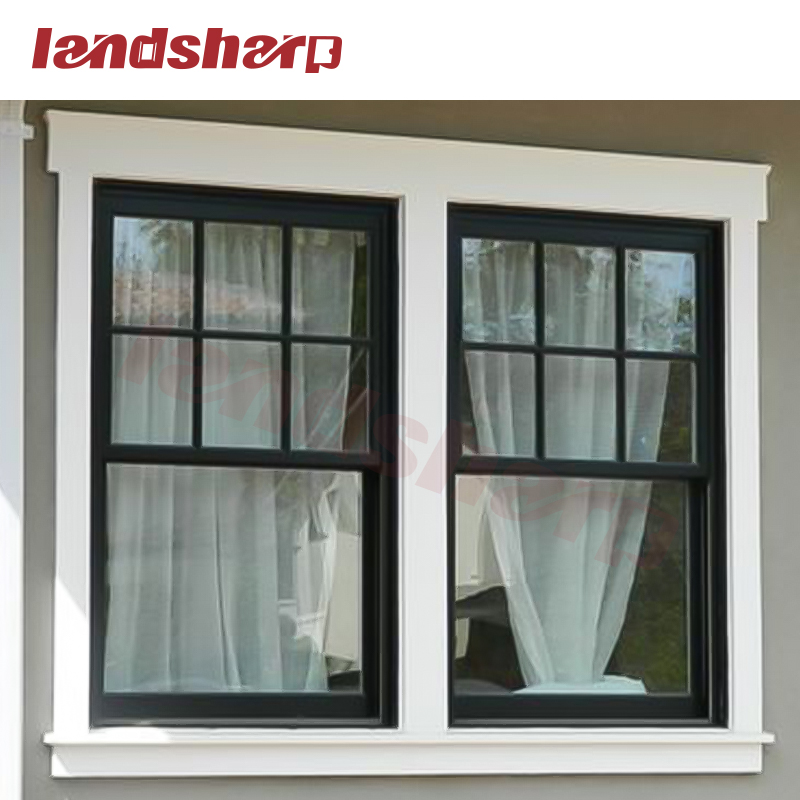

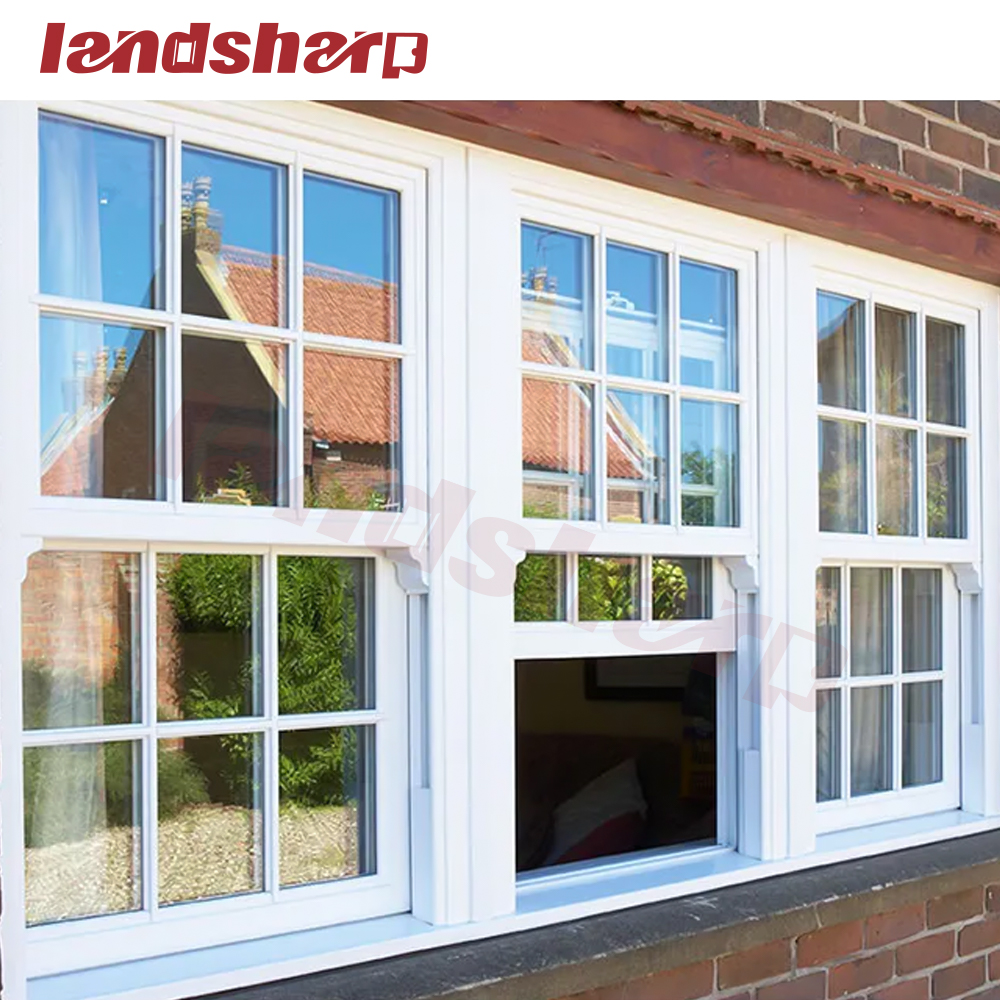

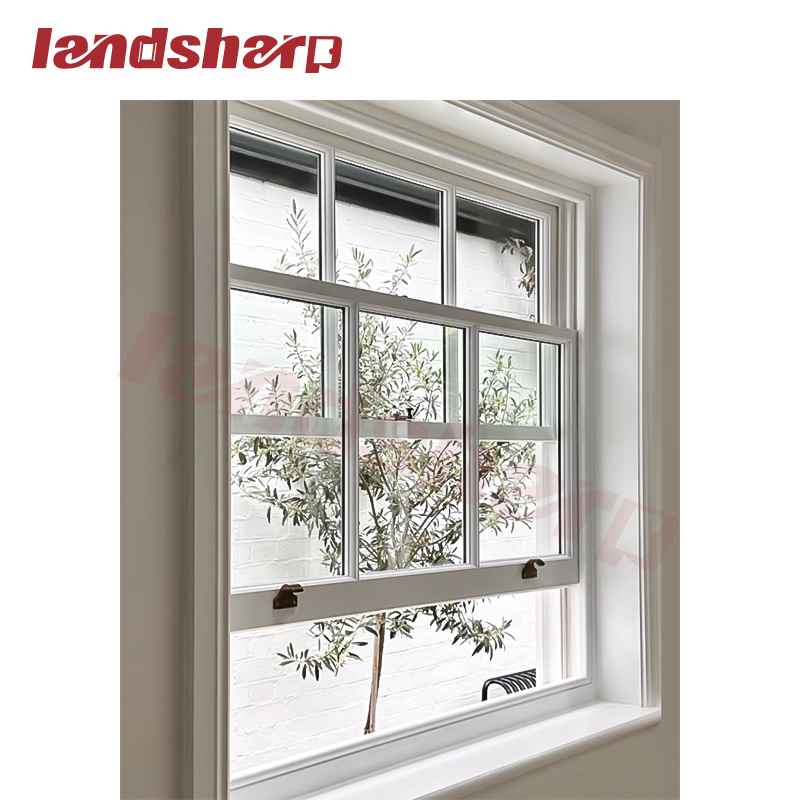

Landsharp Modern French Style Black White Vertical Aluminum up Down Sliding Single Hung Sash Windows for House

Product Description

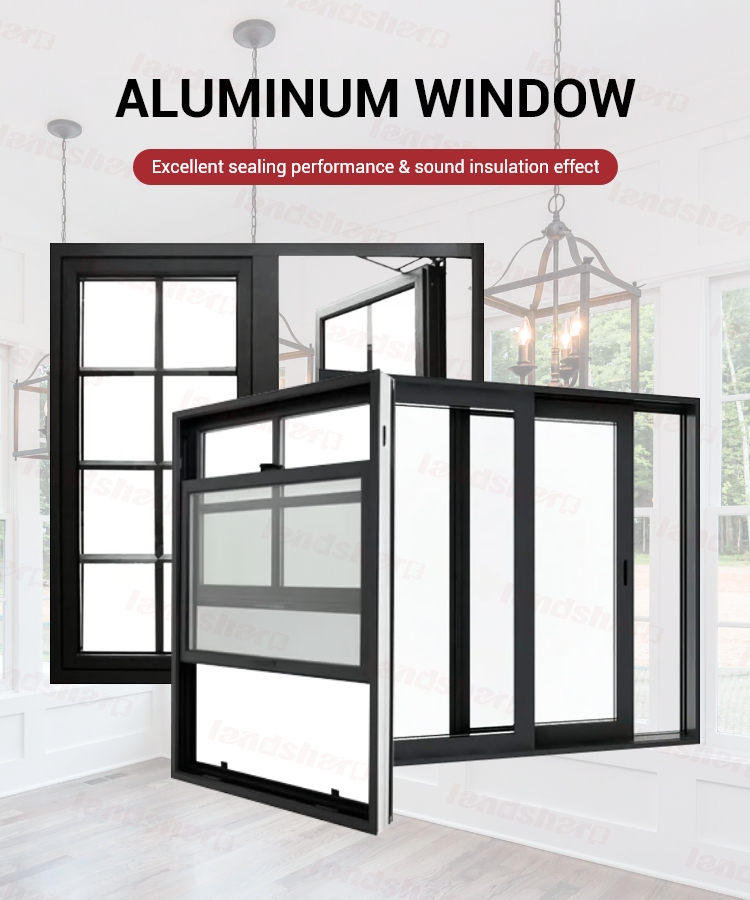

Thermal Break Aluminum Alloy Sash Window
📝 Product Specifications
SERIES Thermal Break Aluminum Alloy Series Sash Window
Warranty More than 5 years
Profile 6063-T5 Thermal Break Aluminum Profile
Thickness 1.8-2 mm Aluminium Thickness

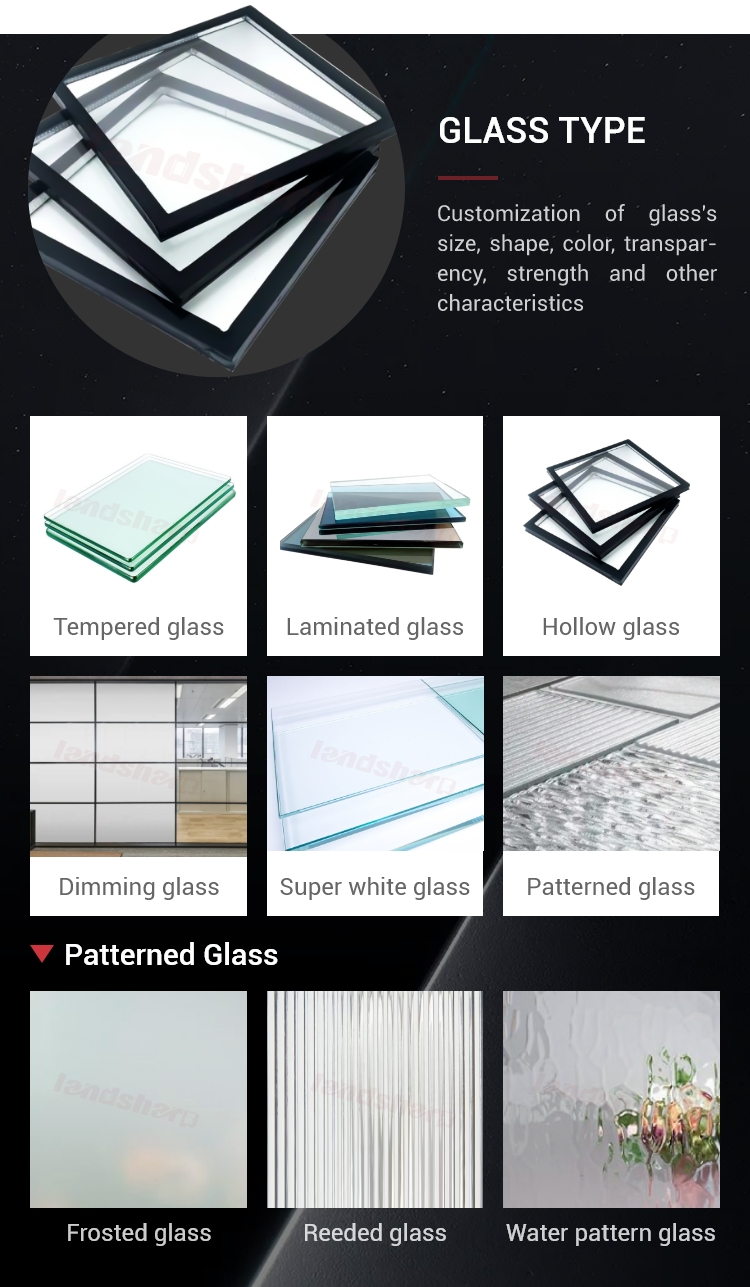

Glass Tempered glass / Hollow glass / Laminated glass / Bullet-proof Glass / Coated glass / Low-E glass / Heat reflecting glass / Art glass
Hollow Glass Recommond Double Glazing Tempered 5mm+12Ar+5mm
Hardware GU

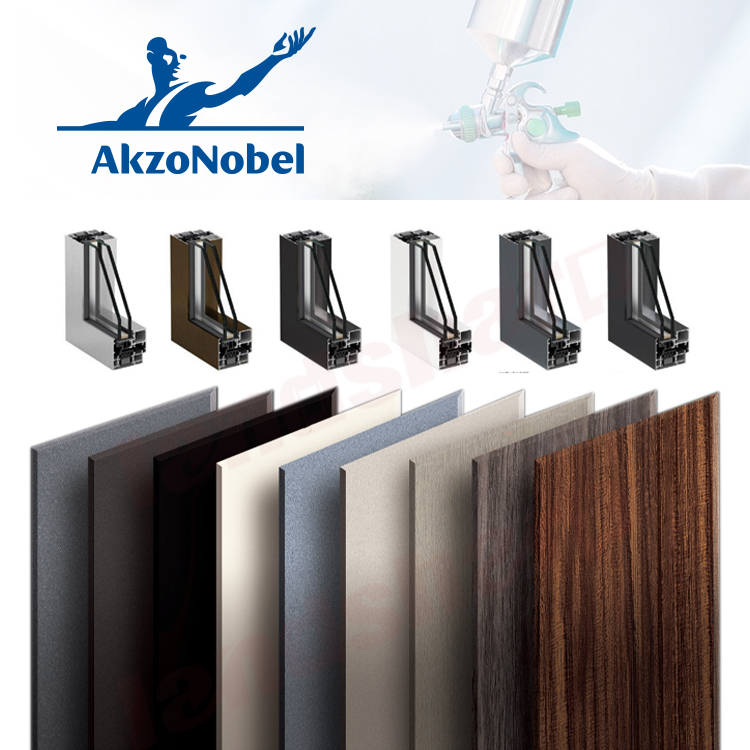

Surface Treatment Akzo Nobel T1010 powder (global 10-year warranty), Anodized Wooden Grain, PVDF Coating

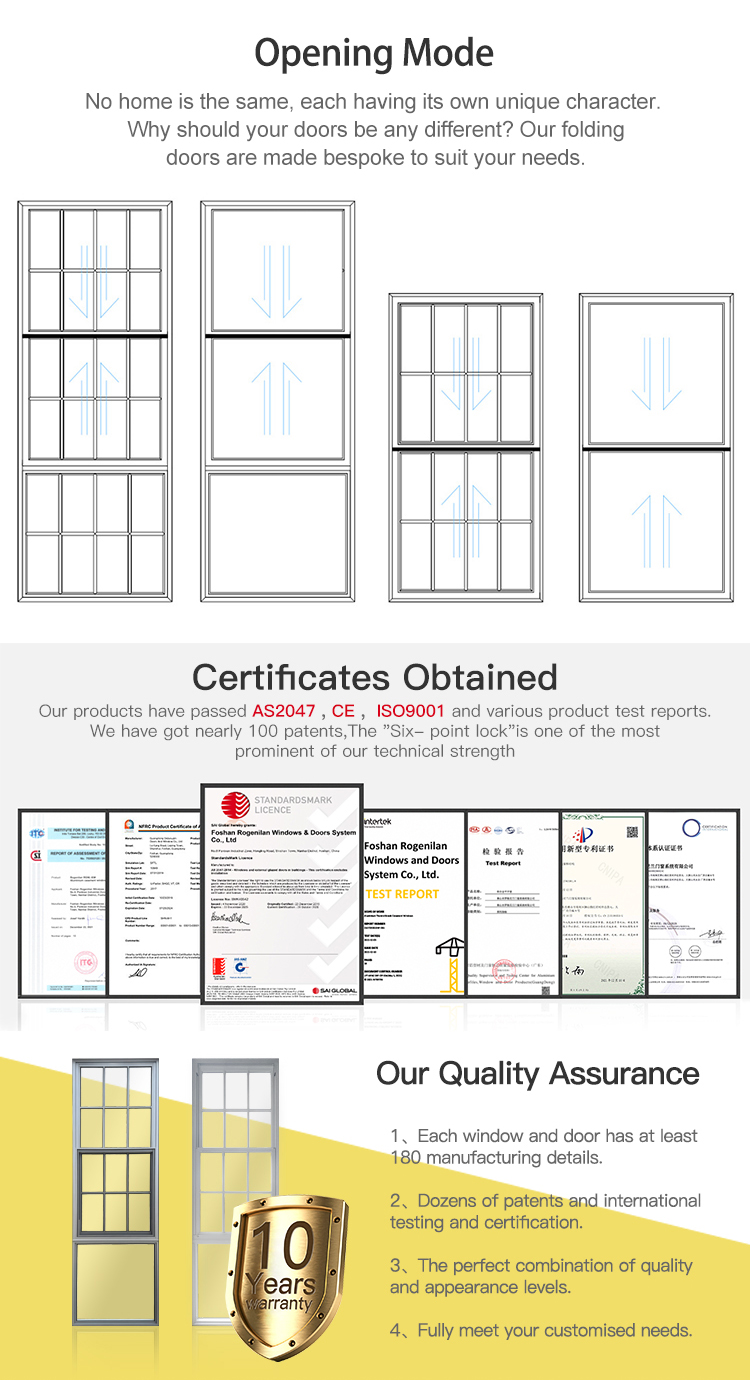

Opening Mode Vertical Sliding

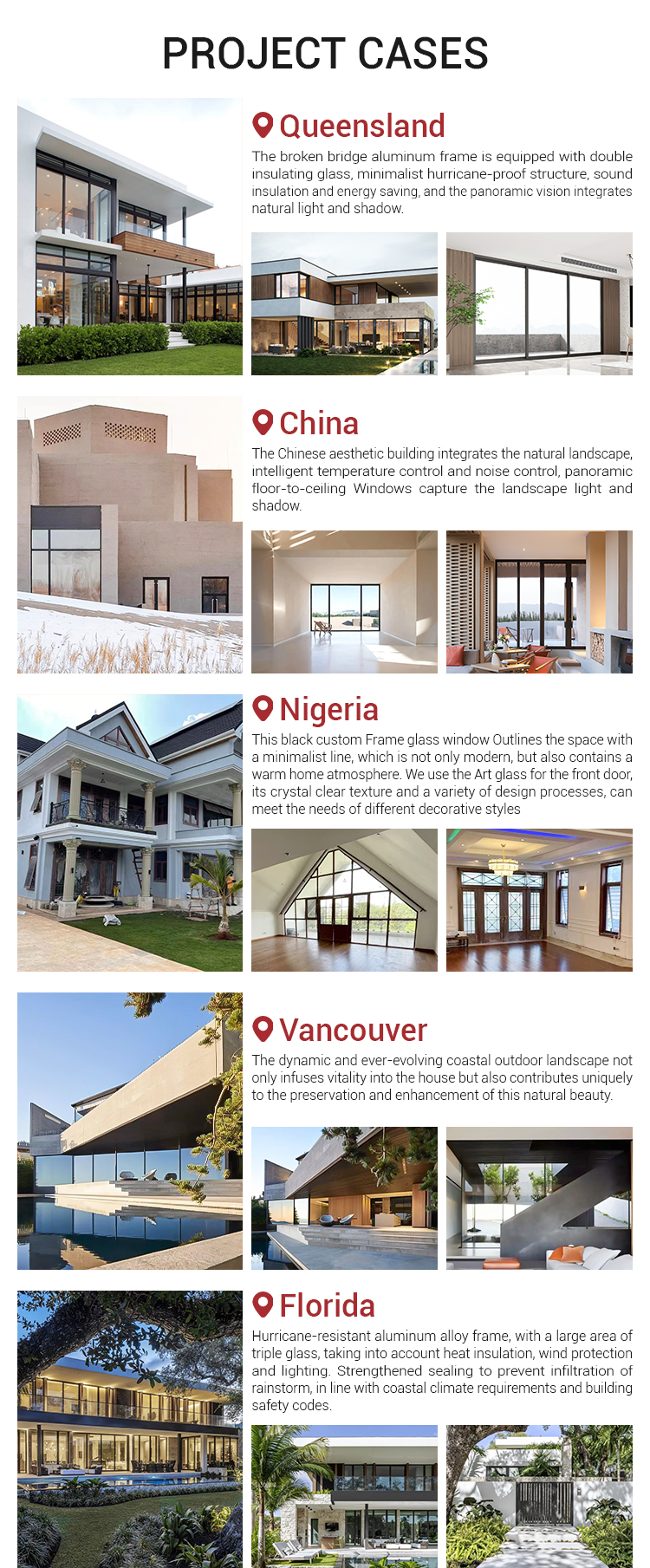

★ Project Cases

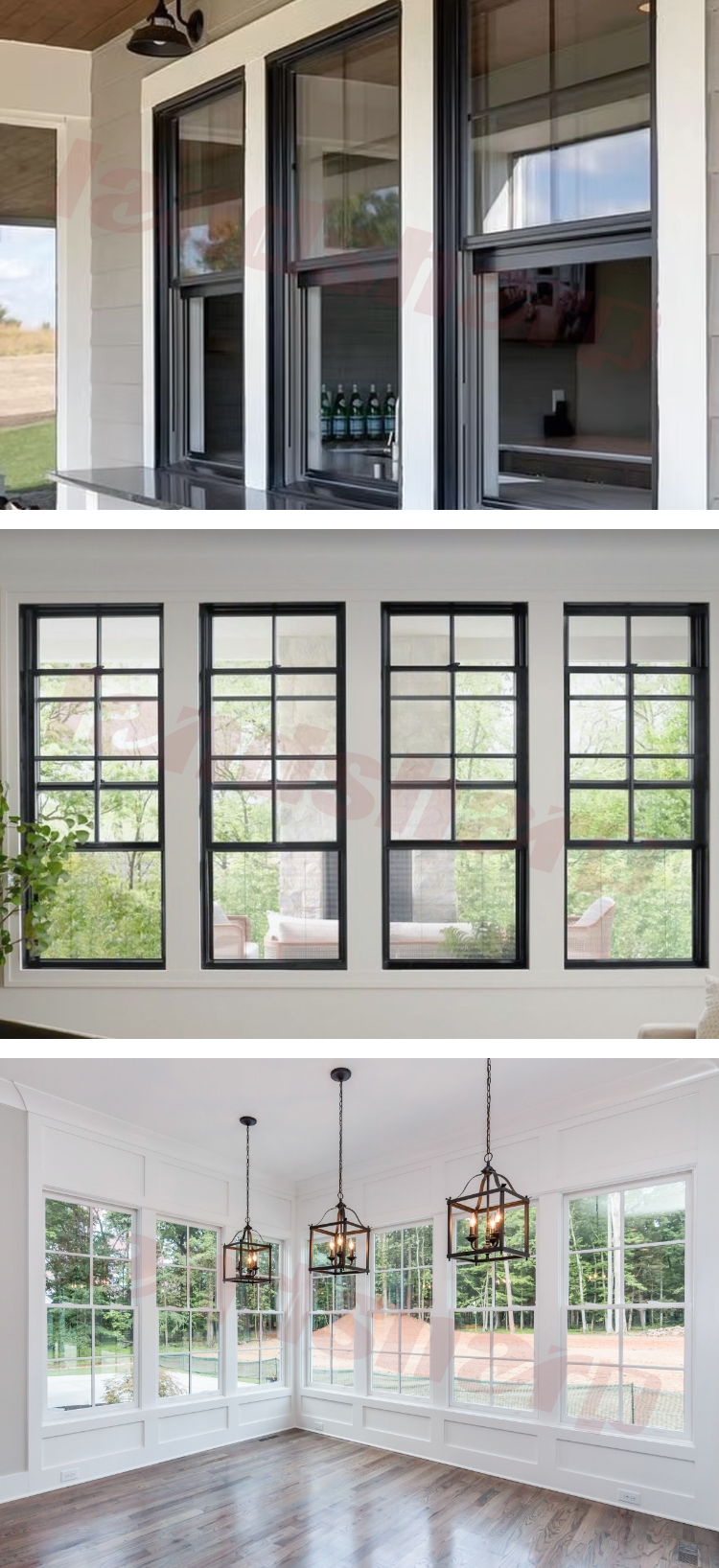

Window Project Showcase

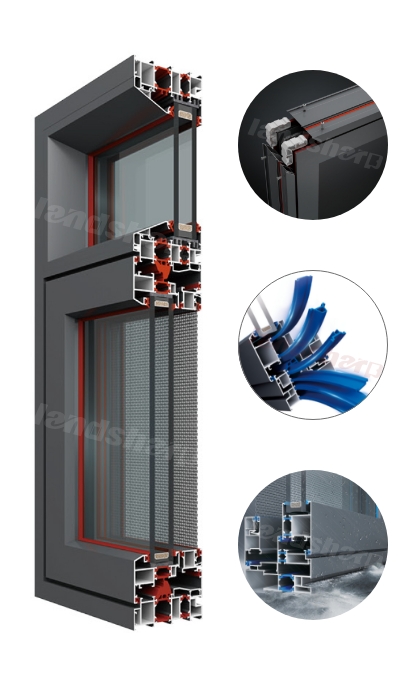

Window Structural Advantages
Key Advantages
1 PIN GLUE INJECTION PROCESS

Fill the gap between the aluminum and corner code.

2 Multi Cavity Insulation Strip

PA66 high thermal insulation strip is used to completely block the heat conduction path of the profile.

3 Concealed Drainage Design

Avoids the possibility of rainwater backflow.

⚙ Adopt High Strength Profile and Strict Production Process

The structural design is firm, the wind pressure strength is far better than the plastic steel Windows and ordinary aluminum alloy Windows, can withstand high wind pressure, to ensure the safety performance of doors and Windows in wind and rain weather, especially suitable for coastal cities and other countries with large wind.

High Strength Profile Processing

High-quality Sash windows feature a four-side compression sealing design. When the window sash is closed, it is firmly pressed against the surrounding sealing strips on the window frame. Compared to conventional Sash windows that rely on lateral sealing via wool strips, this design offers superior air tightness and water tightness, enabling more effective prevention of air and rainwater infiltration. As a result, it enhances thermal insulation performance, reduces energy consumption, and provides improved wind pressure resistance.

Compression Sealing Detail
Customization Service: If you want to customize different sizes and materials, we can provide a customization service for you with a minimum order quantity of just 1.
Product Quality Verification

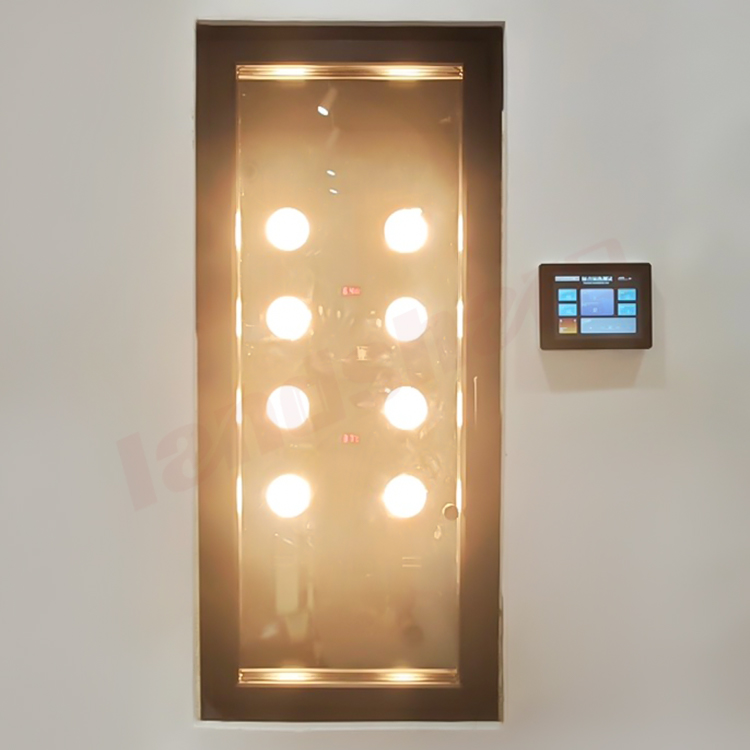

Temperature Difference Testing

A temperature difference environment ranging from -30℃ to +70℃ is simulated in an artificial climate chamber, and the temperature distribution and heat flow dynamics on the inner and outer surfaces of doors and Windows are continuously monitored.

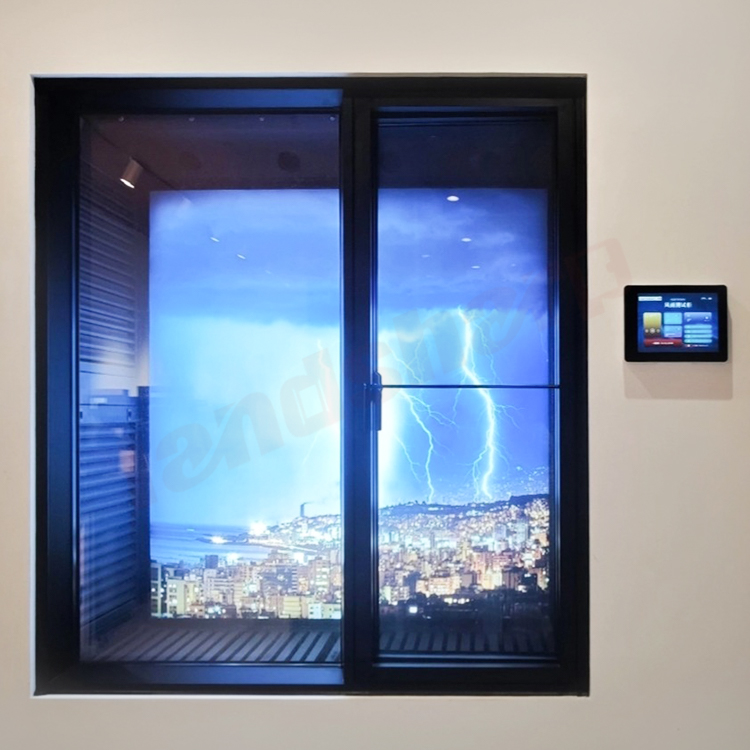

Typhoon Wind Tunnel Simulation

Simulate a 12-level typhoon (wind speed ≥32m/s) + heavy rain (flood volume ≥4L/㎡·min) in the wind tunnel laboratory.

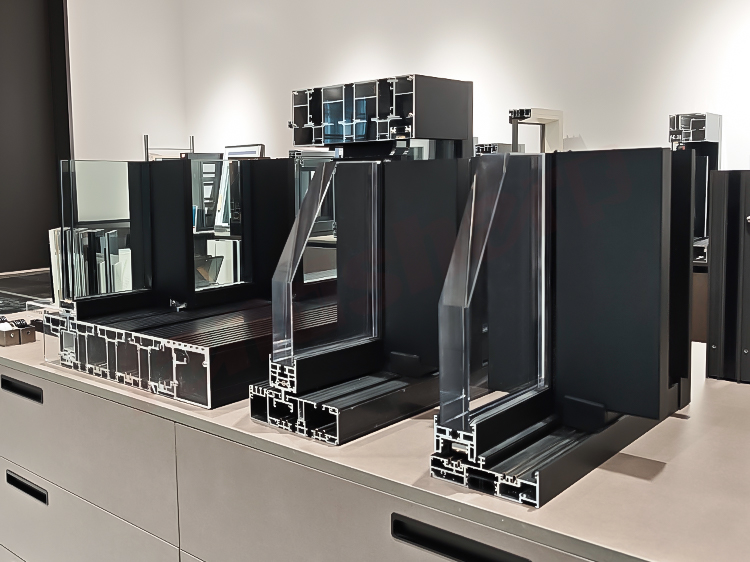

Thermal Insulation Profile Structure

Thermal insulation to reduce heat conduction: The use of thermal insulation broken bridge aluminum alloy profiles can effectively reduce the heat conducted through the doors and Windows, so that the indoor temperature is more stable, warm in winter and cool in summer.

Energy saving: In winter, a window frame with insulation strips can reduce the heat lost through the window frame by 1/3; In summer, it can reduce energy loss more, reduce heating and cooling costs, in line with the concept of energy conservation and environmental protection.

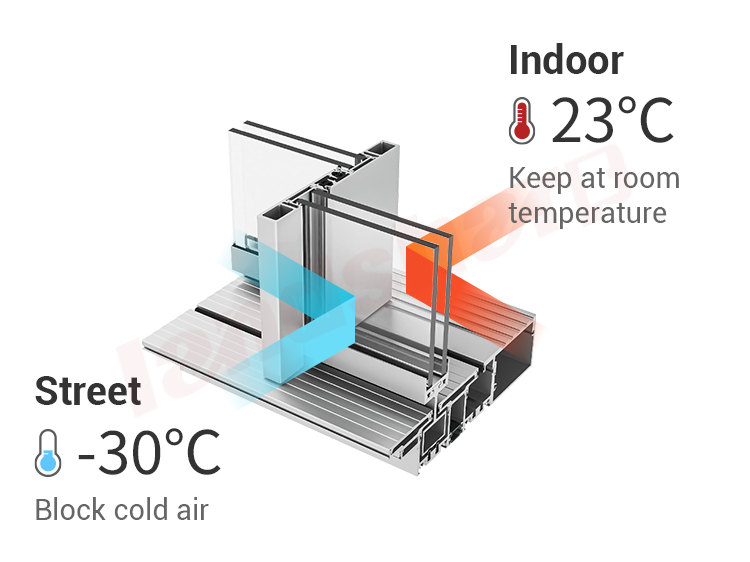

Low-E Insulating Glass
U Value ≤ 2.2 W/(㎡·K)

The three-layer insulating low-e glass and our whole welding technology enhance the integrity of the frame and reduce heat dissipation from the seams.

Weather and Corrosion Durability

Corrosion resistance: Passed the 240-hour neutral salt spray test, suitable for high-humidity coastal areas.

Weather resistance: After 4000 hours of QUV accelerated aging test, the light retention rate is over 90%, and the color stability far exceeds that of ordinary paint (no fading or yellowing for 5-10 years).

✓ Certifications & International Standards
Industry Certifications
Certification Certificate 1
Certification Certificate 2
Certification Certificate 3

AS2047 - Australian window performance standard, UL - American product safety certification, ISO9001 - international quality management system certification, and NFRC - American window and door energy efficiency rating standard. Our products can meet your market demands.

🌎 Global Presence & Exhibitions
Global Engineering Project

These Landsharp projects show that our doors and Windows not only have a wide influence in the domestic market, but also have achieved remarkable results in the international market.

Exhibition Booth
Global Trade Show Experience

We are not only manufacturers but also active participants in the global building materials industry. Our presence is frequently seen at leading international exhibitions, including the National Building Materials Exhibition in the United States and Australia’s Designbuild. By engaging directly with end markets, we continuously gain insights into the distinct requirements of customers in North America and Australia regarding energy efficiency, safety, and design aesthetics. This enables us to ensure that our products remain aligned with international trends and comply with prevailing standards.

Exhibition Engagement
? Frequently Asked Questions
Q1: Are you trading company or manufacturer?
We are Industry and trade integration. We are a manufacturing enterprise certified on-site by Alibaba with 20 years of experience in exporting doors and windows. Due to our reliable quality and excellent service, we have undertaken a large number of government orders in China. Our products comply with US certification, Australian AS2047 certification, and strict quality control standards.
Q2: Do you make customized products based on our design drawings?
Yes, we are a professional factory with an experienced engineering team to make custom products as customers request. The minimum order quantity is just 1 set.
Q3: How long is your delivery time?
Generally it is 10-15 days.
Q4: Do you provide samples? Is it free or extra?
We supply free samples.
Q5: What is your main product?
We can supply the window, door, sunroom, curtain wall system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.
Q6: What material are the window and doors of Landsharp made of and how long is the warranty?
We have aluminum and stainless steel to meet your requirements. The warranty period for hardware and active components is five years, and the Akzo Nobel powder surface treatment comes with a 10-year warranty.

Accepted Delivery Terms: EXW, FCA, FOB, CFR, CIF, CIP, DES, DDP, DDU, Express Delivery

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash
