Aluminum Alloy Sliding Doors Sound Heat Insulation Minimalist Design 5-Year Warranty OEM/ODM Customization Interior Hotel Living
Product Description
Product Highlights
Aluminum Alloy Frame
Durable and lightweight, ensuring long-lasting performance.
Windproof Design
Protects against strong winds and harsh weather conditions.
Magnetic Screen
Easy installation and removal, enhancing ventilation and security.
Customizable Colors
Choose from black or starry grey options for a modern look.
Fixed Opening Style
Maintains structural integrity while allowing for unobstructed views.

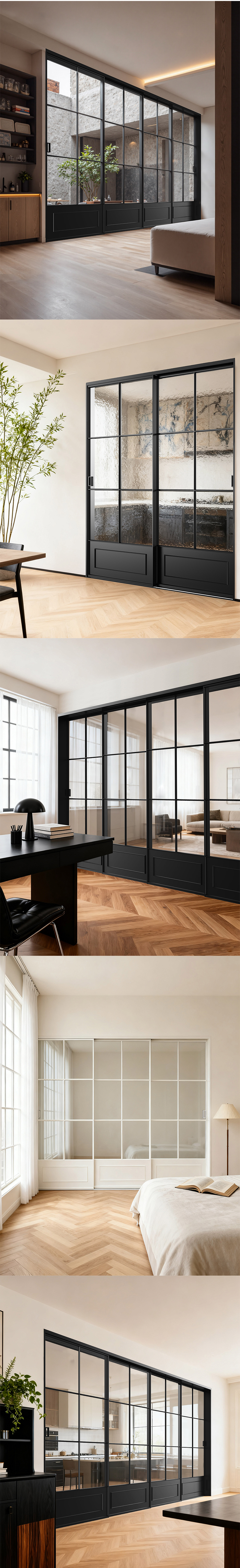

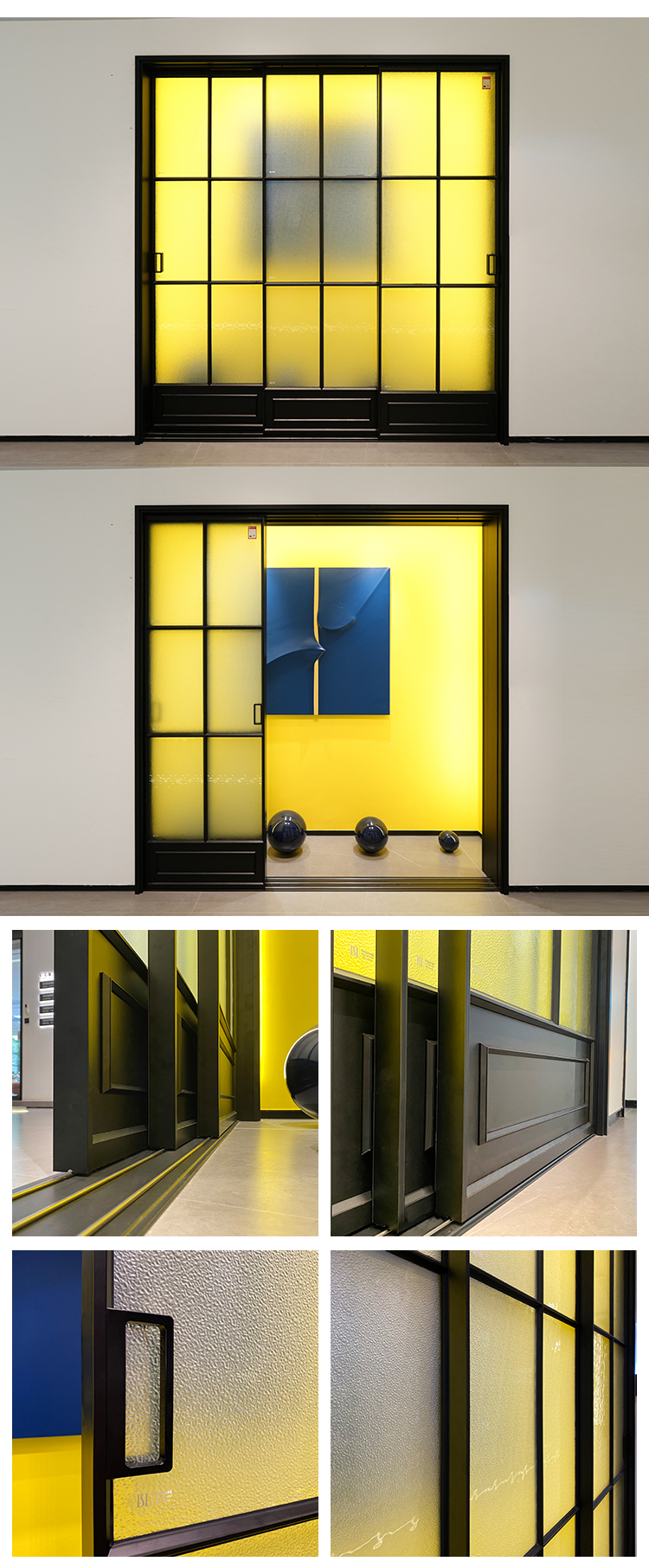

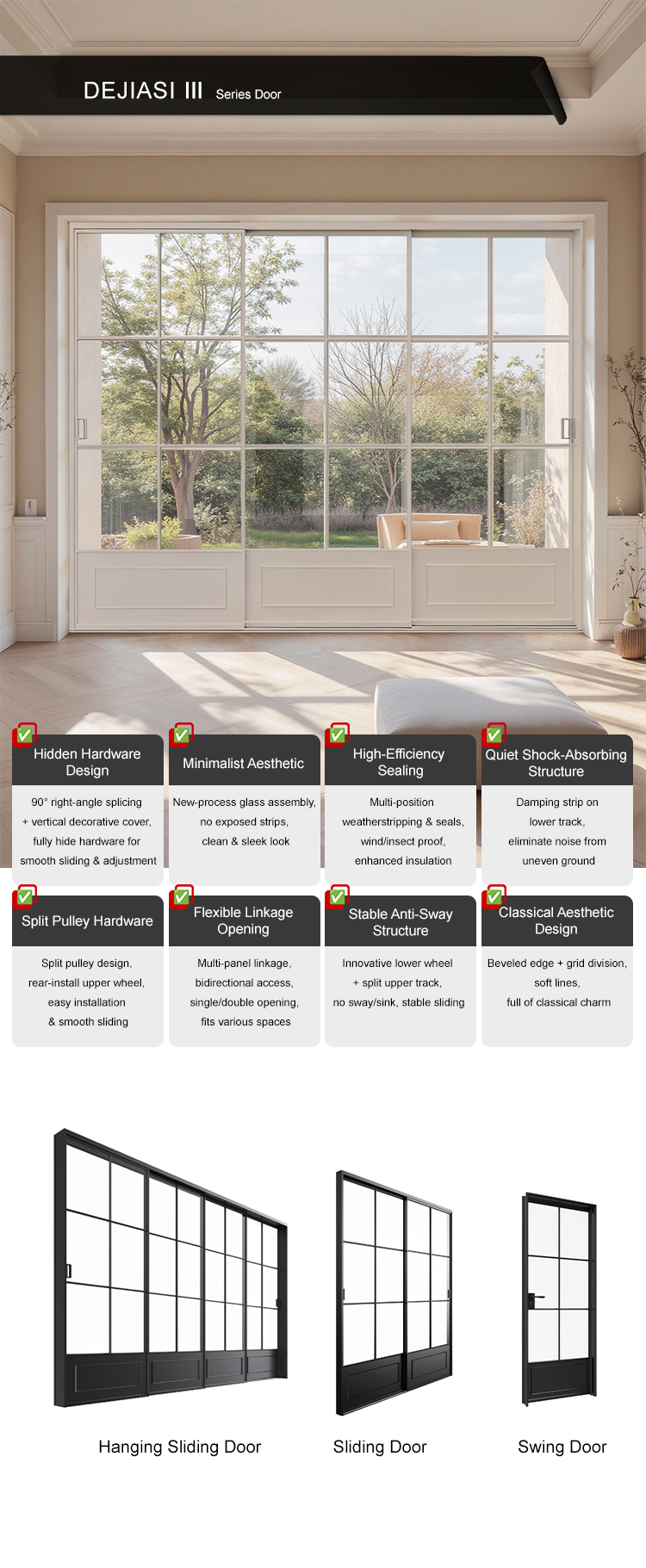

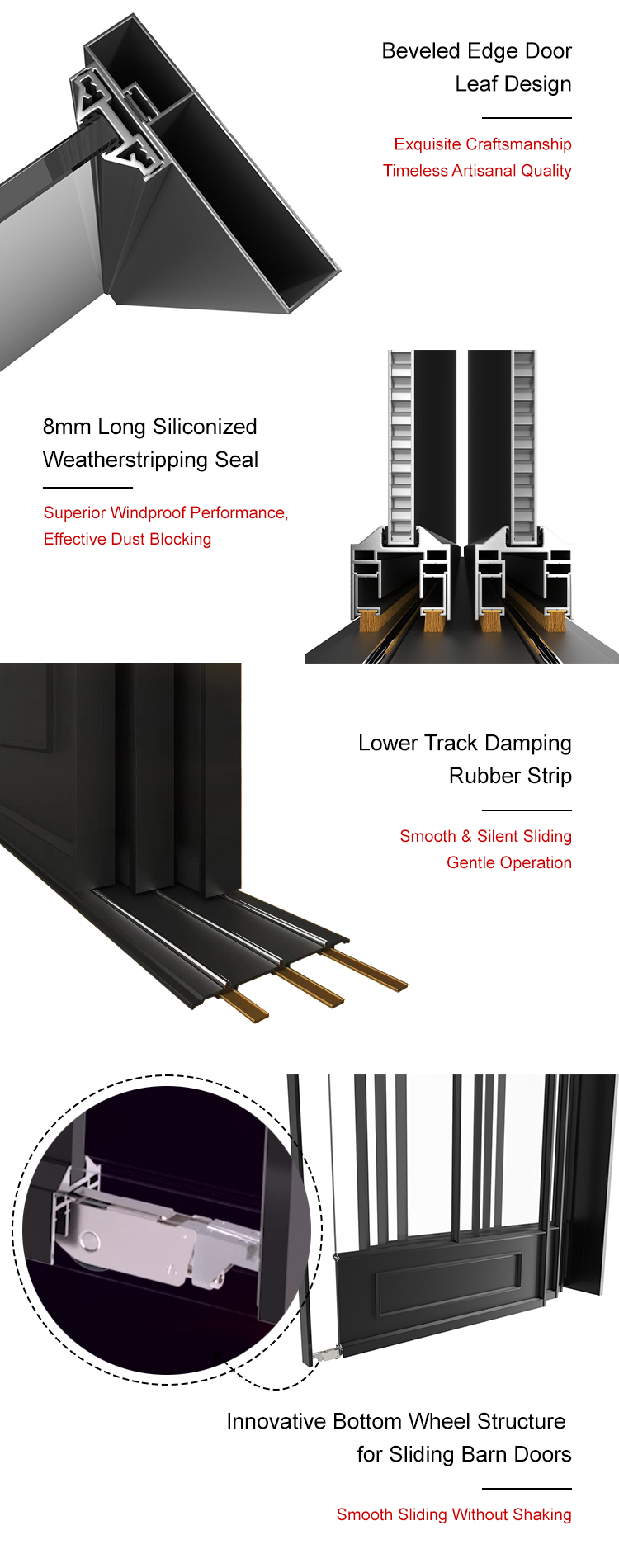

Detail Shot
Basic Product Parameters
| Frame wall occupancy thickness | Single track: 53 mm Double track: 99 mm Triple track: 145 mm Four-track hanging sliding: 191 mm |
|
| Frame profile wall thickness | Side frame: 1.3 mm Bottom track: 2.0 mm Sliding top track: 1.3 mm Hanging sliding top track: 1.5–2.3 mm Vertical door leaf: 2.0–3.0 mm Top & bottom horizontal door rail: 1.5 mm |
|
| Visible surface of profile | Sliding top track: Single track inner & outer: 28 mm; Double track & triple track inner & outer: 38 mm Hanging sliding top track: Inner & outer: 45 mm Flat track: Inner & outer: 5 mm Side frame: Inner & outer: 20 mm Vertical door leaf: Straight edge 10 mm, Bevel edge 6 mm Horizontal door rail: Straight edge 28 mm, Bevel edge 7 mm Door leaf thickness: 40 mm |
|

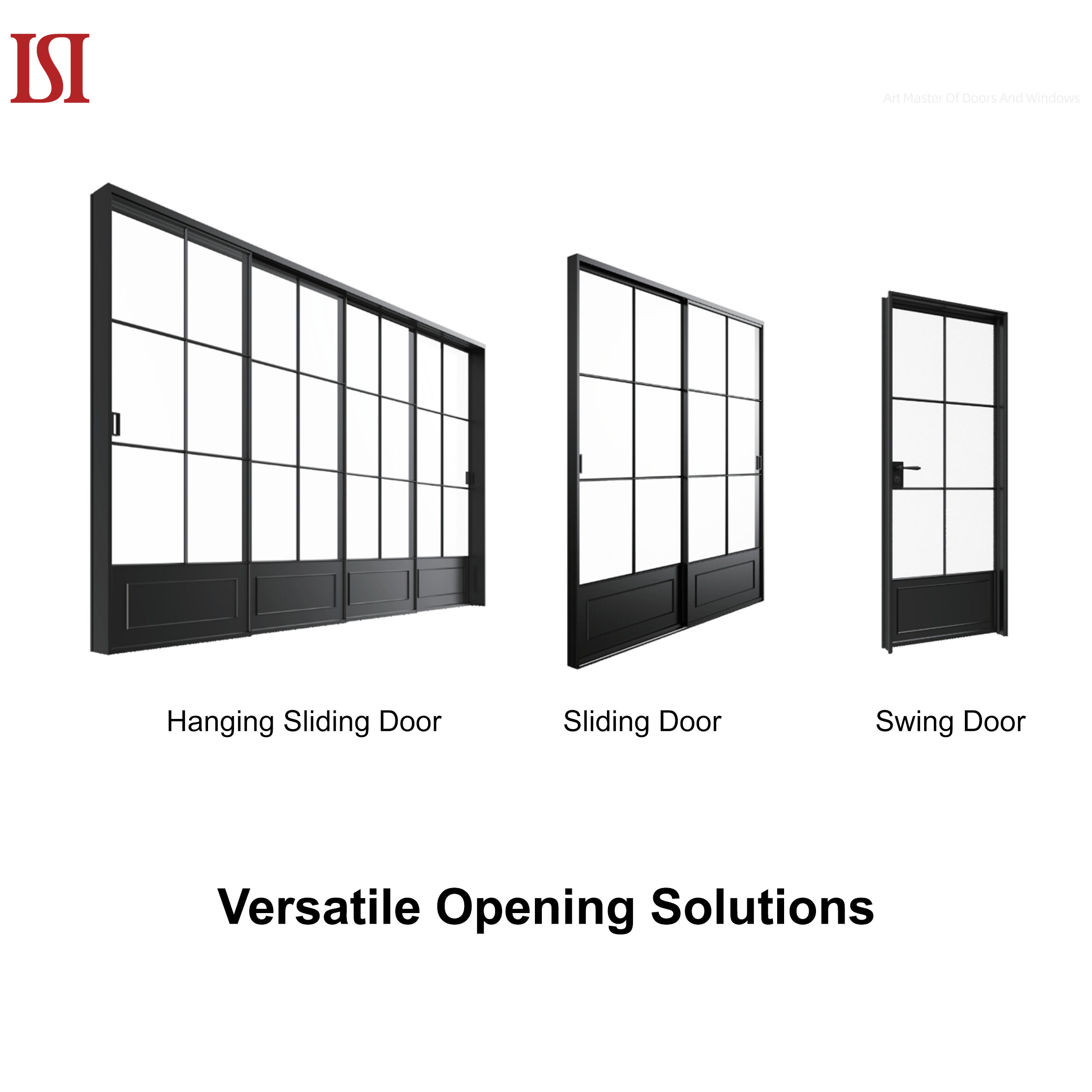

| Opening Methods for Sliding Doors | Single-track sliding door: 1 leaf; Single-track sliding door: 2 leaves Double-track sliding door: 2 leaves; Double-track sliding door: 4 leaves; Double-track sliding door: 2+0 linkage Triple-track sliding door: 3 leaves (3-way linkage); Triple-track sliding door: 6 leaves (3-way linkage); Triple-track sliding door: 6 leaves (corner 3-way linkage); Triple-track sliding door: 3+0 linkage |
|
| Hanging sliding door opening mode | Single-track hanging sliding door: 1 leaf; Single-track hanging sliding door: 2 leaves Double-track hanging sliding door: 2 leaves; Double-track hanging sliding door: 4 leaves; Double-track hanging sliding door: 2+0 linkage Triple-track hanging sliding door: 3 leaves (3-linkage); Triple-track hanging sliding door: 6 leaves (3-linkage); Triple-track hanging sliding door (corner 3-linkage); Triple-track hanging sliding door: 3+0 linkage Four-track hanging sliding door: 4 leaves (4-linkage); Four-track hanging sliding door: 8 leaves (4-linkage); Four-track hanging sliding door: 8 leaves (corner 4-linkage) |
|
| Hardware Configuration | Standard configuration | Sliding door: single damper Hanging sliding door: double damper |
| Optional configuration | Optional: Sliding door double damper Optional: 268# handle & 269# handle magnetic lock (Cannot lock at the closing joint; locking only against side frame) |
|
| Glass Configuration | Standard configuration | 8mm tempered clear glass + 8mm aluminum honeycomb panel |
| Optional configuration | Wire glass, laminated glass, 8mm tinted glass, art glass, etc. | |
| Sash size limitation | Width (mm): Min. 600 – Max. 1400 Height (mm): Min. 1200 – Max. 2700 |
|
| Maximum area | 3.0 m² | |
| Opening sash load limit | 80 kg | |
| Cover moulding wall occupancy thickness | Hanging sliding: 9 mm Sliding: 9 mm |
|
| Cover moulding covering dimension | Hanging sliding top track: 10 mm; Hanging sliding side frame: 20 mm Sliding top track: 10 mm; Sliding side frame: 20 mm |
|
Company Overview
Projects Portfolio
Competitive Advantages
Customization Capabilities
Packaging & Shipping Specifications
Frequently Asked Questions
What kind of profile material does HENNISSY use, and what are its advantages?
We adopt Aerospace-Grade Aluminum Alloy 6063-T5/6063-T6 with a wall thickness of 1.4-3.0 mm (customizable). It features high strength, excellent corrosion resistance, strong wind pressure resistance and long service life, fully adapting to various complex outdoor environments.
What glass configurations are available for your doors and windows?
We provide flexible glass options including single glass, double insulated glass; Low-E, laminated and triple insulated glass are optional, with the insulated glass gap ranging from 12A to 27A. All glass configurations realize outstanding heat insulation, sound reduction, UV protection and safety explosion-proof performance, and you can choose according to actual project needs.
How about the sealing and thermal insulation performance of HENNISSY products?
Our products are designed with multi-seal technology using German/Japanese grade gaskets, and dual thermal break structure is optional. This design ensures super air tightness, excellent water and wind proof performance, and further improves heat and sound insulation effects, creating a comfortable indoor environment.
What hardware accessories are equipped, and is smart customization supported?
We use high-quality stainless steel or imported hardware accessories, which are smooth in opening and closing, wear-resistant and durable with low maintenance cost. The products are compatible with both smart locks and standard locks, and can be adapted to different hardware grades according to customer requirements.
Can HENNISSY doors and windows be customized, and what are the customizable ranges?
Yes, we provide one-stop customization service. The customizable scope includes size, color and multiple opening modes (inward casement, outward casement, sliding, folding, awning). All mainstream opening modes in the industry are covered, realizing full-scenario adaptation to meet personalized needs of household and engineering projects.
What is the delivery cycle for samples and bulk orders?
The delivery cycle of samples is 5-7 working days; the delivery cycle of bulk orders is 35-45 working days. For urgent orders, the delivery time can be negotiated according to production capacity, which can efficiently respond to project progress and the demand for quick check-in.
