Featured Industrial Portfolio: Tested Exterior Systems
Explore 8 precision-engineered exterior door and architectural fenestration systems manufactured under ISO 9001 and rigorously validated against EN 14351-1 CE benchmarks for commercial, luxury villa, and institutional developments.
GONHO Hot Selling Sliding Mosquito Net Magnetic Screen Energy Efficient Custom Size Aluminum Alloy Doors Windows
- Profile Alloy: 6063-T6 Extrusion
- Thermal Bridge: PA66 GF25 Strip
- Standard: CE / AS2047
Single Double Hung Sliding Bulletproof windows Aluminum Glass Pull Up windows
- Ballistic Rating: EN 1063 / UL 752
- Impact System: Laminated Shield
- Infill Tech: Multi-Layer PVB
Wazzor Hotel Hurricane Impact Window Balcony Soundproof Double Glass Aluminum Windows Triple Glaze Black Aluminum Sliding Window
- Wind Load: Class C5 (EN 12210)
- Acoustics: Rw 42 dB Glazing
- Glaze Unit: Triple Low-E Argon
AS2037 NFRC Half Glass Half Aluminum Casement Door
- Certification: CE / NFRC / AS2047
- U-Factor: Ud ≤ 1.2 W/(m²K)
- Gasketing: Continuous EPDM

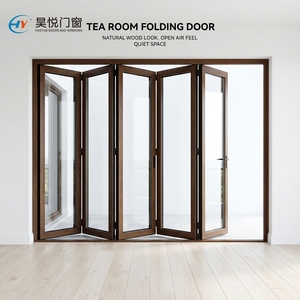

Aluminum Concertina Door Glass Bifold Door Exterior Folding Sliding System aluminum folding door wholesale price
- Mechanism: Stainless Steel Rollers
- Water Perm: Class 9A (EN 12208)
- Operation: Heavy-Duty Track
High Security Folding Interior Door Glass Garage Bi Fold Door Aluminum Folding Glass Doors
- Burglar Class: RC2 / RC3 (EN 1627)
- Lock Points: 5-Point Perimeter
- Frame Core: Reinforced Structural
LANGE Customizable Modern Aluminum Bifold Doors Full View Folding Glass Doors Windproof Energy Efficient For Villa Residential
- Finish: PVDF / Anodized
- Sightline: Ultra-Slim Profile
- Thermal: Sub-Zero Tested

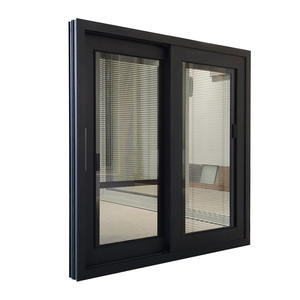

Aluminium Sliding Window Double Glazed windows with Inserted Blinds
- Cavity Seal: Hermetic Argon Filled
- Acoustics: Sound Insulation 38dB
- Control: Magnetic / Motorized
EN 14351-1 Technical Matrix: Demystifying CE Compliance for Exterior Clad Doorsets
Procuring exterior doors for commercial masterplans, municipal projects, and luxury residential developments within the European Economic Area (EEA) and high-regulation global markets necessitates rigorous verification of harmonized product standard EN 14351-1:2006+A2:2016. Aluminum-clad exterior systems represent the pinnacle of composite fenestration engineering, blending the external shielding of architectural aluminum with high-mass thermal cores.
| Performance Characteristic | Harmonized Test Protocol | Mandatory CE Baseline | DERCHI Engineered Standard | Compliance Status |
|---|---|---|---|---|
| Thermal Transmittance (Ud) | EN ISO 10077-1 / EN ISO 10077-2 | Ud ≤ 1.8 W/(m²K) | Ud 0.76 – 0.88 W/(m²K) (Triple Low-E + Aerogel Core) | Certified Passivhaus |
| Resistance to Wind Load | EN 12211 / EN 12210 | Class B2 (800 Pa) | Class C5 (≥ 2000 Pa) (Pmax deflection < 1/300) | Cyclone Rated N6 |
| Watertightness Under Pressure | EN 1027 / EN 12208 | Class 4A (150 Pa) | Class 9A / E900 (≥ 900 Pa) Drained Threshold | Monsoon Grade |
| Air Permeability (Infiltration) | EN 1026 / EN 12207 | Class 2 (300 Pa) | Class 4 (600 Pa) Continuous Vulcanized EPDM | Hermetic Seal |
| Acoustic Attenuation (Rw) | EN ISO 10140-2 / EN ISO 717-1 | Rw ≥ 28 dB | Rw 42 – 47 dB (C; Ctr) Multi-Laminated Core | Airport Acoustic Spec |
| Burglar & Impact Resistance | EN 1627 / EN 1630 | RC1 / Unclassified | RC2 / RC3 (German Winkhaus Multi-Point Locking) | Anti-Pry Armor |
Initial Type Testing (ITT) & DoP Verification
Every export batch delivered to EEA contractors includes an authentic Declaration of Performance (DoP) linked directly to certified European Notified Bodies (NB). We document exact raw material provenance, mechanical hinge load calculations, and fire reaction ratings (Class B-s1, d0) according to EN 13501-1.
Differential Thermal Expansion Dynamics
Exterior extruded aluminum alloy (6063-T6) exhibits a coefficient of thermal expansion (α) of ~23 × 10⁻⁶/K, whereas interior timber or steel substrates behave differently. DERCHI implements proprietary non-rigid polyamide POM retaining clips that absorb up to 3.8 mm of differential linear shear stress without panel warping.
Advanced Multi-Point Peripheral Sealing
To achieve Class 9A watertightness, our perimeter frames feature triple continuous vulcanized EPDM compression seals paired with an isobaric drainage chamber. Wind-driven rains are neutralized through pressure-equalized front baffle weeping slots, preventing capillary moisture ingress even during cyclonic storms.
Architectural Anatomy of Aluminum Clad Exterior Doors
Why do premier structural engineers and facade consultants specify aluminum-clad construction over solid timber or monolithic extruded aluminum? The answer lies in the synergistic fusion of two diametrically opposed material strengths.
- Exterior Shielding (6063-T6 Architectural Grade Aluminum): The outer skin features high-precision extruded profiles (wall thickness 2.0mm – 3.0mm) coated with AkzoNobel Interpon D2525 fluorocarbon powder or 25-micron anodizing, providing impervious defense against UV degradation, acid rain, and coastal salt fog.
- Polyamide Thermal Barrier (PA66 GF25): Glass fiber-reinforced polyamide thermal insulation strips break the conductive bridge between the interior and exterior environments, preventing structural condensation and lowering HVAC energy dissipation by up to 38%.
- Interior Core Diversity: From multi-layered finger-jointed FAS-grade European White Oak and Larch to heavy-duty stainless steel security honeycombs with vacuum-injected polyurethane insulation, interiors retain architectural warmth or impenetrable commercial resilience.
- Concealed 3-Way Heavy Duty Pivot & Butt Hinges: Engineered to bear panel masses exceeding 450 kg with micro-calibration along X, Y, and Z axes, ensuring silken closing kinetics and lifelong zero-sag stability.
Acoustic & Thermal Insulation Laboratory Testing
Future Procurement Trends for Exterior Clad Fenestration (2025–2030)
Global supply chains are undergoing structural realignments driven by stringent carbon border adjustment mechanisms (CBAM), smart infrastructure mandates, and off-site modular construction. General contractors and importers must adapt to these four macroeconomic procurement vectors.
1. EPD & Embodied Carbon Benchmarks
By 2026, major European and North American commercial tenders will demand Environmental Product Declarations (EPDs). Forward-thinking suppliers utilize low-carbon hydroelectric aluminum billets (< 4.0 kg CO₂/kg Al) and FSC-certified interior timbers, satisfying LEED v4.1 and BREEAM sustainability credits.
2. BIM Level 2 & Parametric Integration
Procurement directors are phasing out static 2D DWG submittals. Modern contracts necessitate Level of Development (LOD) 350+ Revit and IFC models containing dynamic U-factor calculations, opening clearances, hardware clash detections, and scheduled preventative maintenance metadata.
3. Pre-Hung Modular Fenestration
Rising on-site labor costs across Germany, the UK, the US, and Australia have triggered a massive surge in factory-glazed, fully pre-hung door cassettes. Units arrive on-site pre-calibrated with lock cylinders, perimeter flashing sub-frames, and pre-wired concealed biometric feeds ready for instant crane-in mounting.
4. Direct Factory-Consolidated Sourcing
Middleman markups of 25%–40% from local distributors are being systematically eliminated. Enterprise builders are directly auditing Chinese Tier-1 manufacturing hubs via 3D Virtual Tours and engaging directly with in-house factory engineering desks under FOB, CIF, or DDP delivery frameworks.
Technological Breakthroughs in Aluminum Clad Exterior Systems
How is high-end fenestration engineering evolving to balance minimalist architectural sightlines with ultra-high thermal and acoustic boundaries? Here are the leading technological innovations being integrated into our next-generation production lines.
Vacuum Insulated Glazing (VIG) & Aerogel Inserts
By replacing traditional argon cavities with 0.15mm vacuum gaps, overall door glazing thickness shrinks by 50% while achieving thermal resistance matching solid insulated masonry (Ug values down to 0.45 W/(m²K)). Aerogel infill strips embedded inside the aluminum profile cavities neutralize thermal radiation loops completely.
Concealed Smart Biometrics & Mechatronic Locks
Modern luxury exterior doors integrate capacitive 3D fingerprint sensors, facial recognition scanners, and motor-driven multi-point locking (e.g., Winkhaus blueMatic EAV3). These systems communicate over encrypted OSDP/RS-485 bus connections directly with KNX, Crestron, or Control4 residential automation hubs.
Magnetic Zero-Threshold Accessibility (DIN 18040-1)
Traditional high weather-dams create barrier issues for barrier-free architectural standards. Next-generation systems feature flush floor transitions utilizing twin magnetic drop-down neodymium gasket seals. When the door closes, magnets lift the rubber gasket into a hermetic lock; upon opening, the seal retracts flush into the floor plane.
180,000 m² Automated Smart Manufacturing Base
Guangdong Dejiyoupin Doors & Windows (DERCHI)
Recognized consistently among China's Top 10 fenestration manufacturers, DERCHI operates one of Asia's most sophisticated door and window industrial hubs in Shishan Town, Foshan.
- 25+ Years Industrial Mastery: Founded with a dedication to precision engineering, currently employing over 600 specialized production technicians, fenestration facade engineers, and bilingual project managers.
- Global Accreditations: Holding 8 international testing certificates including CE (EN 14351-1), ISO 9001, AS 2047 (Australian Cyclone N6), and North American NFRC / UL fire-rated standards.
- End-to-End Vertical Manufacturing: In-house CNC 5-axis precision milling centers, automated profile cutting lines, dust-free electrostatic powder and fluorocarbon coating booths, and insulated glass unit (IGU) robotic assembly lines.
- Over 100 Appearance & Utility Patents: Relentless R&D investments resulting in cutting-edge hinge load mechanics, hidden drainage siphons, and high-security structural profiles.
Full Building Envelope Consolidation
Consolidate aluminum-clad exterior entry doors, pivot systems, hurricane windows, and curtain walls in one manufacturing shipment to slash freight costs.
International Testing & Verification
Every door design undergoes cyclic mechanical fatigue testing (> 200,000 cycles), air-water-wind chamber testing, and salt-spray corrosion analysis.
Bespoke Architectural Customization
Free CAD shop drawings, structural wind load calculations, and BIM integration tailored to project specifications, rough openings, and structural lintels.
Global Project Management SLA
Dedicated English-speaking technical sales engineers supporting architects, developers, and facade contractors from rough opening survey to site installation.
